PARK RANGER SPECIAL

Why is it called the “Park Ranger Special”?

Rangers and Superintendents at Federal, Provincial/State Parks, the Forest Service, the Corps of Engineers, the Fish and Wildlife Service, along with local Parks & Recreation Departments and golf courses across North America have all discovered a “greener” approach to trail grooming.

Need Help? Complete the Request Quote form to help design the perfect combination.

Pulled by 15” wide, long-track snowmobile or a tracked ATV/UTV’s at 12-15 mph, these groomers are simply more efficient (we call them “ultra-low resistance groomers). They do not drag a big chuck of snow along, raking it back and forth. Instead, a toothed cutting knife called the SNO-RAZOR shears off the very top, un-even snow leaving a perfectly flat trail. The weighted compaction sled fills and combs the razored snow into a friendly 15 groove/ft. corduroy pattern.

The Park Ranger Special is a lightweight, easy-to-handle, entry-level groomer that allows you to level and compact a trail for virtually any snow sport. Classic and Freestyle skiing trails, personal snowmobile trails, dog sledding, tubing runs, you name it, this rugged little groomer has turned them all into solid, level trails.

The Park Ranger Special 48 Package includes:

  • SNO-MASTER 48 Chassis, with 12” Wing Set & Coupler Set
  • SM48 SNO-RAZOR with Subframe & Snow Deflectors
  • TRAKOR Standard, with 12” Wing Set & 6” Standard Coupler
  • SM REAR HITCH, to attach TRAKOR to SM48
Pin Coupler for snow groomer

Park Ranger Special 48

#PR-4126P

Includes

#SM-4126P

#TK-S126P

SM Rear Hitch

$5,898.95

Park Ranger Special 48

#PR-4126R

Includes

#SM-4126R

#TK-S126P

SM Rear Hitch

$5,898.95

The Park Ranger Special 72 Package includes:

  • SNO-MASTER 72 Chassis, with 12” Wing Set & Coupler Set
  • SM72 SNO-RAZOR with Subframe & Snow Deflectors
  • TRAKOR Standard, with 12” Wing Set & 6” Standard Coupler
  • SM REAR HITCH, to attach TRAKOR to SM48
Pin Coupler for snow groomer

Park Ranger Special 72

#PR-7126P

Includes

#SM-7126P

#TK-S126P

SM Rear Hitch

$6,668.95

Park Ranger Special 72

#PR-7126R

Includes

#SM-7126R

#TK-S126P

SM Rear Hitch

$6,668.95

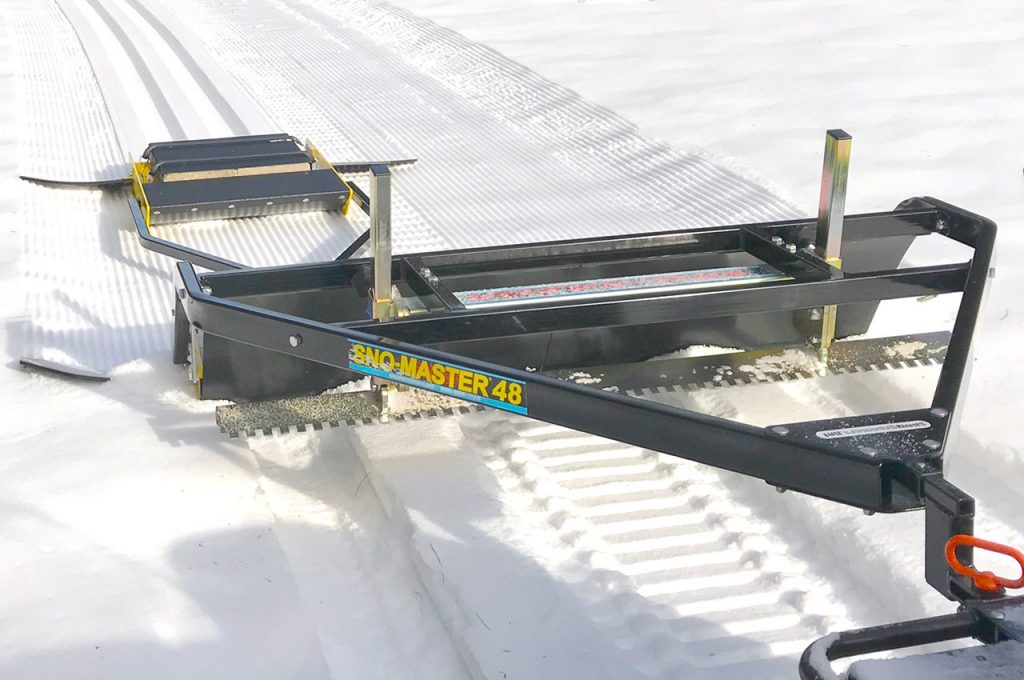

Snow Groomer Sno-Master 48 with Trakor . Has the blade for cutting leveling the snow and the wheel kid for easy moving and road crossings.

NORDIC Pro Packages

We developed the SNO-MASTER 48 in response to our TRAKOR customer’s requests. They wanted an easy-to-pull groomer to make freestyle/skating loops that worked as well as their TRAKOR did at setting classic tracks. The SNO-MASTER 48 (formerly the PRO-SKATE 4) has since become the #1 selling lightweight groomer because of its versatility, cost and most importantly, the beautiful trail it leaves.

Need Help? Complete the Request Quote form to help design the perfect combination.

From powder to slush and every type of snow in between, this rugged Nordic snow groomer does it all. It’s easier to pull and operates at higher speeds, which means a smaller towing machine and more time skating.

Virtually all Nordic SM48’s we sell are fitted with the optional SNO-RAZOR to provide a perfect, seamless corduroy for freestyle technique. Protected by shear bolts, the SNO-RAZOR swings rearward if it encounters a stump or rock.

A 12” Wing Set is included, the wings extend the grooming width, “feather” the overlap of a previous/adjacent pass and radius the groomed snow into the ungroomed banks. These wings are made from an extremely durable urethane, they bend up when encountering a tree or post and snap back down for more.

Safe Nordic snow grooming.

The breakaway coupler set includes a flat coupler to set normal compaction angle, plus 3” & 5” offset couplers to increase the compaction angle in fresh snow (no roller needed!). The replaceable stainless steel tracking runners keep the SM48 running straight, even with a TRAKOR offset to one side.

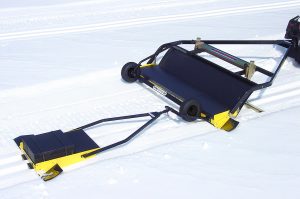

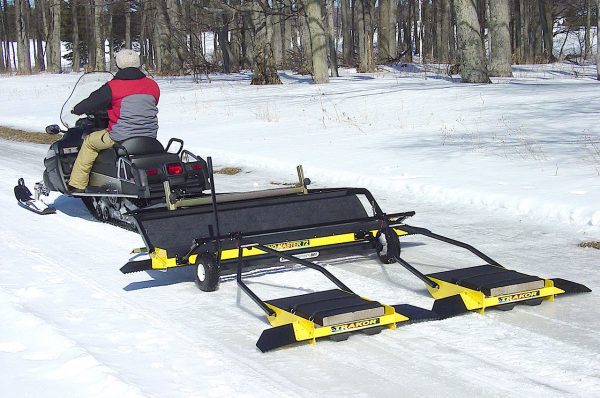

If you have road crossings or the need to move in and out of a maintenance building, you may be interested in the optional SM48 Wheel Kit.

Towing a TRAKOR behind a Wheel Kit equipped SNO-MASTER 48 requires an optional Towbar. The standard, full-width model has three towing positions; the single sided Towbar can be mounted on either side.

The NORDIC Pro 48 Package includes:

  • SNO-MASTER 48, with 12” Wing Set
  • 3″ Offset STD PIN or 3″ Offset RING Coupler Sets
  • SM48 SNO-RAZOR with Subframe & Snow Deflectors
  • TRAKOR Standard, with 12” Wing Set
  • TRAKOR Standard Drawbar
  • DeTRAKOR
  • SM Rear Hitch
  • Single Towbar
  • 48″ Wheel Kit
Pin Coupler for snow groomer

NORDIC Pro 48

#NP-4126P

Includes

#SM-4126P

#TK-S126P

48″ Wheel Kit

Single Side Towbar

DeTRAKOR

SM Rear Hitch

$7,379.95

NORDIC Pro 48

#NP-4126R

Includes

#SM-4126R

#TK-S126P

48″ Wheel Kit

Single Side Towbar

DeTRAKOR

SM Rear Hitch

$7,379.95

The NORDIC Pro 72 Package includes:

  • SNO-MASTER 72, with 12” Wing Set
  • 3″ Offset STD PIN or 3″ Offset RING Coupler Sets
  • SM72 SNO-RAZOR with Subframe & Snow Deflectors
  • TRAKOR Standard, with 12” Wing Set
  • TRAKOR Standard Drawbar
  • DeTRAKOR
  • Single Towbar
  • 72″ Wheel Kit
Pin Coupler for snow groomer

NORDIC Pro 72

#NP-7126P

Includes

#SM-7126P

#TK-S126P

72″ Wheel Kit

Single Side Towbar

DeTRAKOR

$8,279.95

NORDIC Pro 72

#NP-7126R

Includes

#SM-7126R

#TK-S126P

72″ Wheel Kit

Single Side Towbar

DeTRAKOR

$8,279.95

Pin Coupler for snow groomer

NORDIC Pro 72

Double

#NP-7246P

Includes

#SM-7126P

(2) #TK-S126P

72″ Wheel Kit

72″ Full Towbar

(2) Towbar Pin Hitch

(2) DeTRAKOR

$10,679.95

NORDIC Pro 72

Double

#NP-7246R

Includes

#SM-7126R

(2) #TK-S126P

72″ Wheel Kit

72″ Full Towbar

(2) Towbar Pin Hitch

(2) DeTRAKOR

$10,679.95

0%

    360 Degree View

    Click and drag the image for a 360 degree view of a SNO-MASTER with SNO-RAZOR.

    NORDIC Groomer Specifications

     SNO-MASTER 48SNO-MASTER 72
    Grooming Width:
    - without Wings 48" (1219 mm)72" (1829 mm)
    - with 12" Berm Wings56" - 60" (1422 mm - 1524 mm)80" - 84" (2032 mm - 2133 mm)
    - with 12" Standard Wings60" - 72" (1524 mm - 1829 mm)84" - 96" (2133 mm - 2438 mm)
    Length - Overall 68" (1727 mm) 79" (2007 mm)
    Height - Overall16" (406 mm)16" (406 mm)
    SNO-RAZOR Width 48" (1219 mm) 72" (1828 mm)
    SNO-RAZOR Height AdjustmentInfinitely AdjustableInfinitely Adjustable
    SNO-RAZOR Angle Adjustment15 - 30 degrees15 - 30 degrees
    Weight - empty w/12" Wings102 lbs (46.4 kg)168 lbs (76.4 kg)
    Weight with SNO-RAZOR155 lbs (70.4 kg)234 lbs (106.4 kg)
    Block Capacity (2" concrete blocks)99 lbs (45 kg) 6132 lbs (60 kg) 8
    Total Maximum Weight254 lbs (115.4 kg)366 lbs (166.4 kg)
    Chassis/Drawbar MaterialSteelSteel
    SNO-RAZOR MaterialSteelSteel
    HardwareStainless SteelStainless Steel
    Recommended Towing Machines:
    - Snowmobile15" wide, long-track (136"+)20" wide, long-track (154"+)
    - ATV/UTVTrack EquippedTrack Equipped

    NORDIC Replacement Parts & Accessories

      Part #Price
    Wings
    6" Wing Set (1-6" RH Wing + 1-6" LH Wing)200-5010$149.99
    Sale: $99
    8" Wing Set (1-8" RH Wing + 1-8" LH Wing)200-5020$179.99
    Sale: $109
    12" Berm Wing Set (1-12" RH Wing + 1-12" LH Wing)200-5040$199.99
    Sale: $119
    12" Wing Set (1-12" RH Wing + 1-12" LH Wing)300-1012$199.99
    COUPLERS & HITCHES
    ATV Universal Hitch 3/4″300-1004$79.99
    UTV Universal Hitch 1″300-1005$89.99
    SNO-MASTER Rear Hitch300-1006$99.99
    Snow Groomer hitch couplers6″ Standard Pin Coupler w/ Detent Pin300-1060$59.99
    Ring type Pintle Hook6″ Ring Coupler300-1061$49.99
    6″ Standard Pin Coupler – 3″ Offset w/ Detent Pin300-1062$89.99
    6″ Ring Coupler – 3″ Offset300-1063$79.99
    6″ Standard Pin Coupler – 5″ Offset w/ Detent Pin300-1064$109.99
    6″ Ring Coupler w/ 5″ Offset300-1065$99.99
    DeTRAKOR
    small classic track layer]DeTRAKOR100-6040$600.00
    DeTRAKOR Pan300-2050$349.99
    36″ DeTRAKOR Comb300-2051$119.99
    DeTRAKOR Lifting Handle w/Vinyl Grip300-2052$49.99
    DeTRAKOR Brackets (Set of 2 – 1-RH, 1-LH)300-2053$69.99
    DeTRAKOR Cutter Set (Set of 2 – 1-RH, 1-LH)300-2054$19.99
    DeTRAKOR Locking Pin and Bracket300-2055$49.99
    PLASTICS-COMBS
    20″ Chassis Bow Cover300-2006$29.99
    20″ Chassis Weight Cover (w/ 2-15″ Rubber Straps)300-2007$39.99
    20″ Chassis Side Weight Cushion (Set of 2)300-2009$9.99
    20″ Chassis End Weight Cushion300-2010$10.99
    TRAKOR Track Mold (Set of 2)300-2029$199.99
    TRAKOR Sled Skin300-2030$39.99
    TRAKOR Lower Weight Cushion300-2031$29.99
    24″ Urethane Comb (SM48 Set of 2)300-5004-4$279.99
    24″ Urethane Comb (SM72 Set of 3)300-5004-7$449.99
    SM48 Weight/Bow Cover Set (1 Left, 1 Right)300-5005$49.99
    SM72 Weight/Bow Cover Set (1 Left, 1 Right, 1 Center)300-5006$69.99
    48″ Deflector PC/ABS Panels (Set of 2-24″)300-6008$99.99
    72″ Deflector PC/ABS Panels (Set of 2-36″)300-6009$149.99
    DRAWBARS - SUB-FRAMES - HITCH PLATES
    STANDARD 44 Drawbar300-2024$199.99
    20″ Hitch Plate Assembly300-2026$79.99
    LOPPET 60 Drawbar (RH and LH)300-2028$489.99
    SM48 Drawbars (LH and RH)300-4801$579.99
    SM48 Hitch Plate Assembly300-4802$89.99
    SM48 Sub-Frame300-6005$399.99
    SM72 Sub-Frame300-6006$599.99
    SM72 Drawbars (LH and RH)300-7201$589.99
    SM72 Hitch Plate Assembly300-7202$119.99
    HARDWARE
    .125 Hitch Pin Set (Set of 2)300-1001$3.99
    .093 Hitch Pin (Set of 2)300-1002$2.99
    3/8" Orange Handle Detent Pin300-1003$14.99
    TRAKOR Stainless Steel Cutters (Set of 2 – RH & LH)300-2032$59.99
    SNO-MASTER Tracking Runner Set (Set of 2 Stainless Steel)300-5001$54.99
    SNO-MASTER Pan Link Adjustment w/Spacer (Set of 2)300-5002$49.99
    Thumb Screws (Set of 3 10-32)300-5003-1$4.99
    Thumb Screws (Set of 3 1/4-20)300-5003-2$7.99
    TOW BARS
    Tow Bar Short Tube300-5011$49.99
    48 Tow Bar Tube300-5012$119.99
    72 Tow Bar Tube300-5013$149.99
    Tow Bar Bracket300-5014$99.99
    Tow Bar Hitch300-5015$99.99
    WHEEL KIT
    SNO-MASTER 48″ Wheel Kit300-4803$699.99
    18″ Lifting Handle w/ Rubber Grip300-4804$64.99
    Wheel Kit Mounting Bracket (Set of 2)300-5008$39.99
    10″ Tubed Wheel300-5009$19.99
    Wheel Kit Locking Pin300-5010$19.99
    SNO-MASTER 72 Wheel Kit300-7203$799.99
    24″ Lifting Handle w/ Rubber Grip300-7204$79.99
    SNO-RAZOR
    48″ Cutter Assembly300-6002$779.99
    72″ Cutter Assembly300-6003$979.99
    48″ SNO-RAZOR100-3020$1,500.00
    72″ SNO-RAZOR w/Deflector100-3030$1,600.00
    SNO-RAZOR 36/48 Cross Tube300-6010$139.99
    SNO-RAZOR 72 Cross Tube300-6011$179.99
    SNO-RAZOR 36/48 Pivot Plate (Right)300-6012$79.99
    SNO-RAZOR 36/48 Pivot Plate (Left)300-6013$79.99
    SNO-RAZOR 36/48 Shear Bolts/Nuts (Set of 2)300-6014$4.99
    SNO-RAZOR 72 Pivot Plate (Right)300-6015$109.99
    SNO-RAZOR 72 Pivot Plate (Left)300-6016$109.99
    SNO-RAZOR 72 Shear Bolts/Nuts (Set of 2)300-6017$5.99
    SNO-RAZOR 36/48 Leg300-6018$79.99
    SNO-RAZOR 72 Leg300-6019$189.99
    SNO-RAZOR Fluted Handle Locking Screw300-6020$19.99
    Magnetic Base Angle Indicator300-6021$9.99
