SNO-BLASTER®

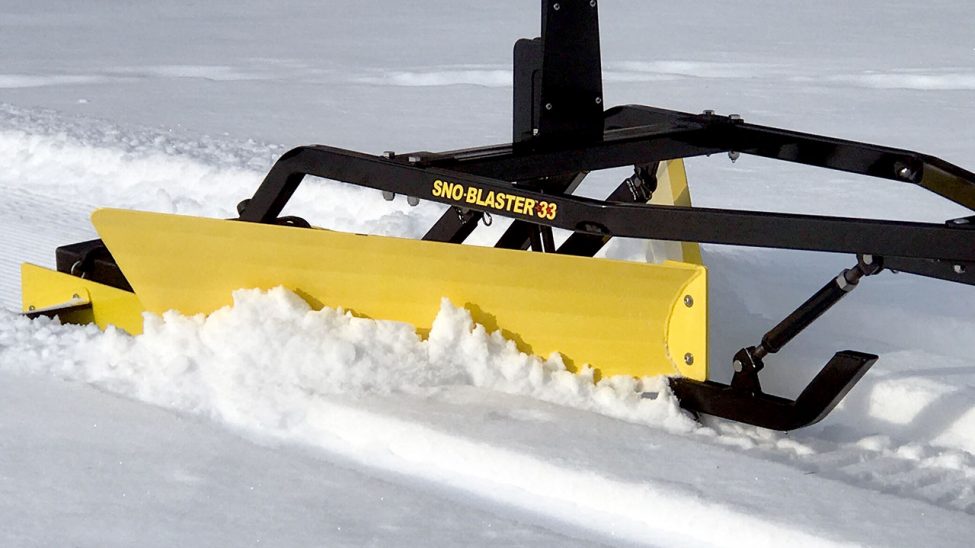

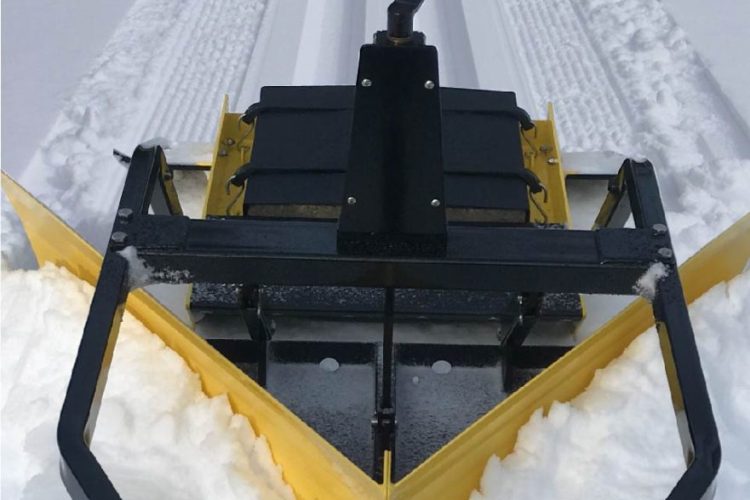

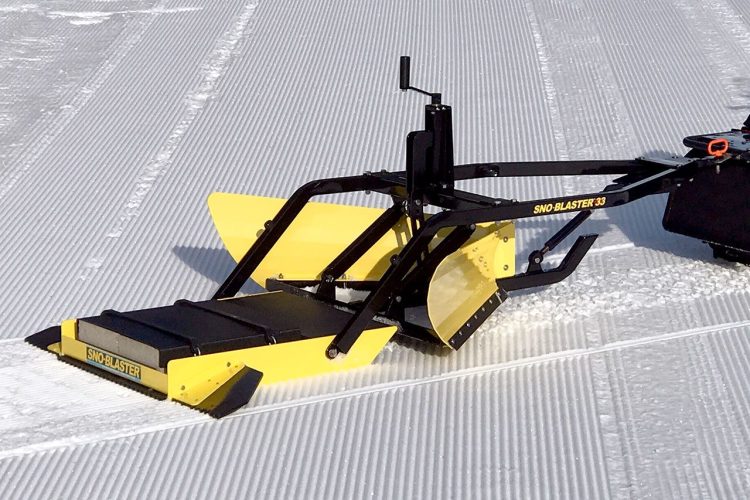

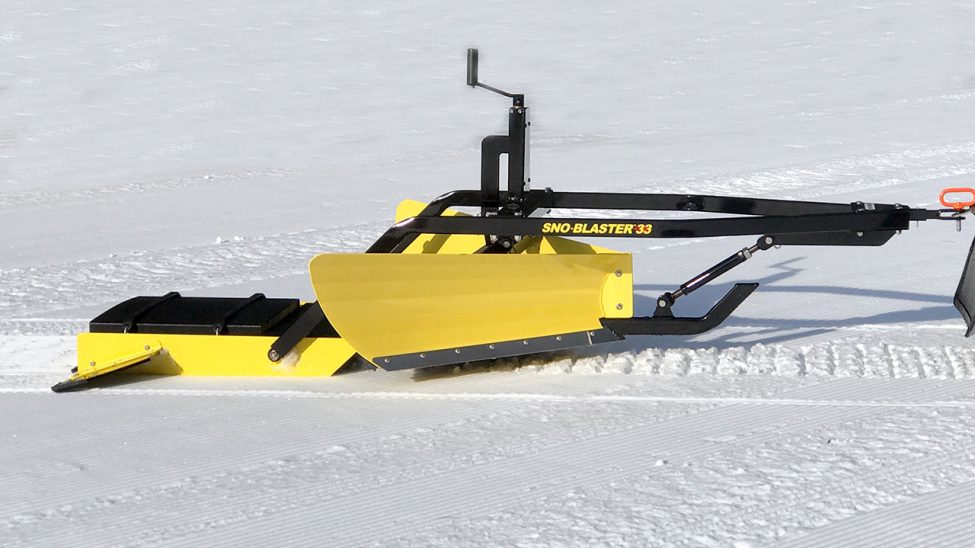

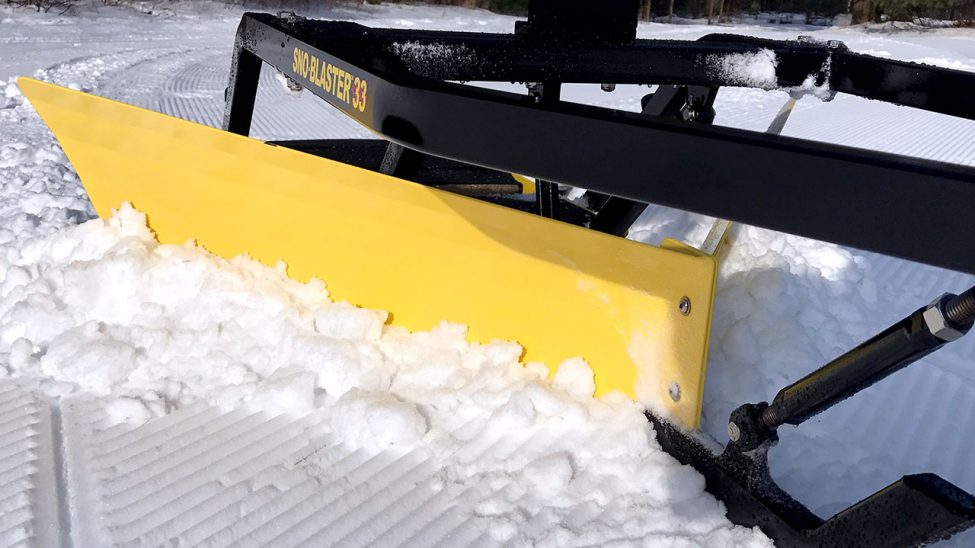

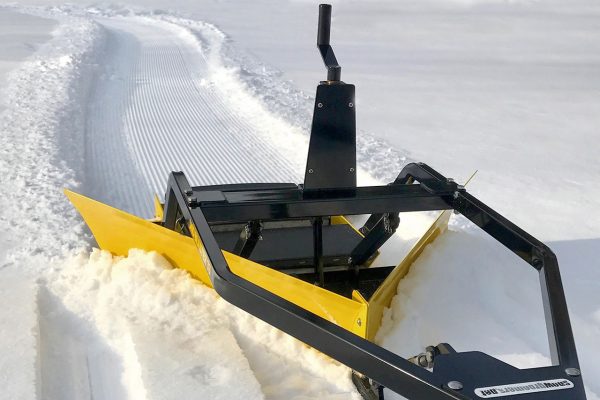

The SNO-BLASTER 33 Fat Bike groomer features a patented 33” (838mm) wide V-Plow that floats on a compacted trail base or can be adjusted up to leave as much snow as desired.

Developed primarily for Fat Bike trail grooming, it also clears snow from lake and outbuilding access trails in a hurry. Snow on slush-covered lakes can be cleared away, allowing the slush to freeze. The plow runner/ski moves the plow up and over hidden obstacles. The plow lift permits 5” of adjustment and allows the plow to be carried out of the snow when establishing a trail.

This Fat Bike trail groomer is extremely fun and easy to use.

Specifications Price List Shipping Calculator

Narrow Trail Groomer Specifications

	PATH-MASTER	PATH-MASTER w/SNO-RAZOR	SNO-BLASTER
Grooming Width:
- without Wings	20" (508 mm)	20" (508 mm)	20" (508 mm)
- with 12" Berm Wings	32" (812 mm)	32" (812 mm)	32" (812 mm)
- with 6" Wings	33" (838 mm)	33" (838 mm)	33" (838 mm)
- with 8" Wings	36" (914 mm)	36" (914 mm)	36" (914 mm)
- with 12" Standard Wings	40" - 44" (1016 - 1118 mm)	40" - 44" (1016 - 1118 mm)	40" - 44" (1016 - 1118 mm)
Drawbar Length	60" (1524 mm)	60" (1524 mm)	60" (1524 mm)
Length - Overall	79" (2006 mm)	79" (2006 mm)	79" (2006 mm)
Height - Overall	15" (381 mm)	22" (559 mm)	29" (737 mm)
Weight with 12" Wings:
- without Blocks	71 lbs (32 kg)	112 lbs (51 kg)	140 lbs (64 kg)
- with 2 - 4" Blocks (72 lbs)*	143 lbs (65 kg)	184 lbs (84 kg)	212 lbs (96 kg)
- with 2 - 6" Blocks (110 lbs)*	181 lbs (82 kg)	222 lbs (101 kg)	250 lbs (114 kg)
V-Plow Width	X	X	33" (838 mm)
Height Adjustment	X	5" (127mm)	5" (127mm)
Chassis/Drawbar Material	Steel	Steel	Steel
SNO-RAZOR/V-Plow Material	Steel	Steel	Steel
Hardware	Stainless Steel	Stainless Steel	Stainless Steel
Recommended Towing Machines:
- Snowmobile	15" wide, long-track (136"+)	15" wide, long-track (136"+)	15" wide, long -track (136"+)
- ATV/UTV	Track Equipped	Track Equipped	Track Equipped
*Solid Concrete Blocks 8" x 16"

Specifications subject to change without notice.

Narrow Trail Groomer Price List

NARROW TRAIL GROOMERS
PATH-MASTER®	20” Compaction Groomer with choice of Wing Set	$1199.95
SNO-RAZOR®	36” SNO-RAZOR and Snow Deflector	$999.95
V-PLOW	V-Plow for PATH-MASTER®	$1199.95
SNO-BLASTER®	20" Compaction Groomer and V-Plow with choice of Wing Set	$2299.95

All prices in U.S. Dollars. Prices subject to change without notice. Michigan Residents add 6% Sales Tax.

Please specify:

1. Wing Set

6” Wing Set
8” Wing Set
12” Berm Wing Set (.230” thick)
12” Standard Wing Set (.290” thick)

2. Coupler Type

Standard Snowmobile Pin-Type

Ring-Type for Pintle Hook

3. Hitch Height for SNO-BLASTER

The SNO-BLASTER requires a hitch height from 15” – 19’” to achieve the full 5” adjustment range of the plow.

We will include a 3” or 5” offset coupler to get you within the 15” – 19” range if needed. The offset coupler can go up or down, to increase or decrease hitch height.
