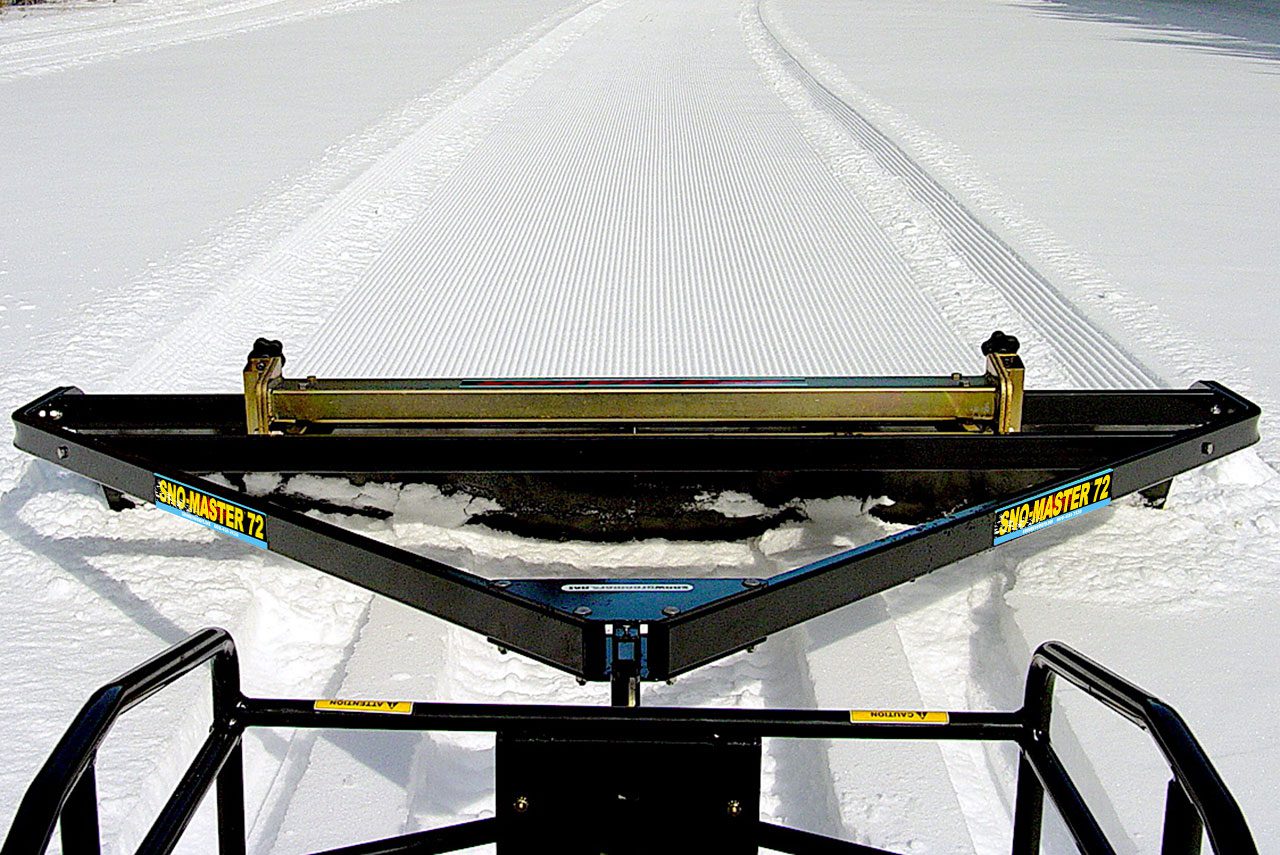

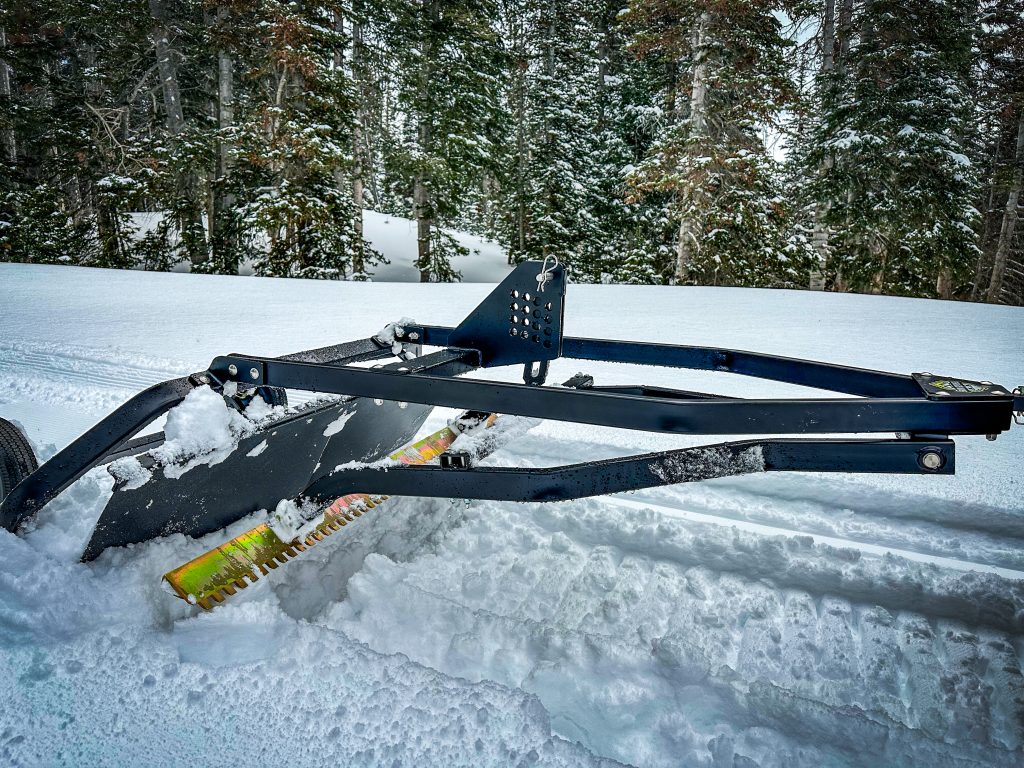

The SM72 snow groomer is normally equipped with the optional 72” SNO-RAZOR, which is used for leveling, removing the tracks left by the towing machine and leaving a perfect corduroy in all snow conditions. This wide trail groomer is perfect for towing behind your tracked UTV.

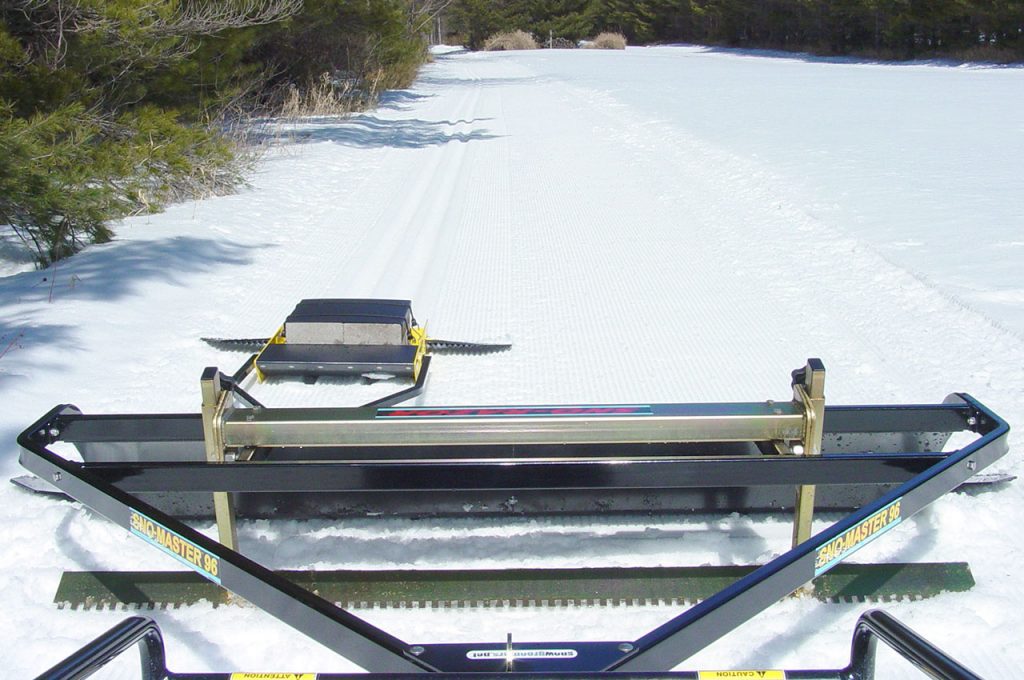

The SNO-MASTER 72 is also offered as a basic compaction groomer for those who just want to pack a sledding, skiing or snowboard hill or groom a trail to their ski-in/ski-out home.

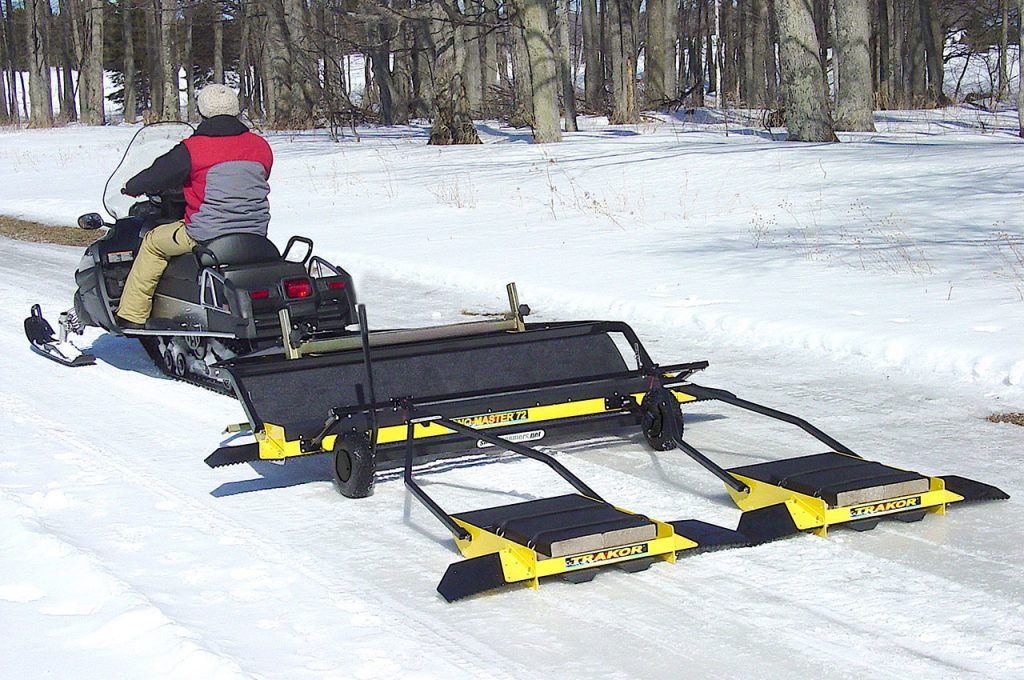

A Standard 12” Wing Set is included. The break-away coupler set includes a flat coupler to set compaction angle, plus 3” & 5” offset couplers to increase compaction angle for fresh snow, eliminating the need for a separate “roller” implement.

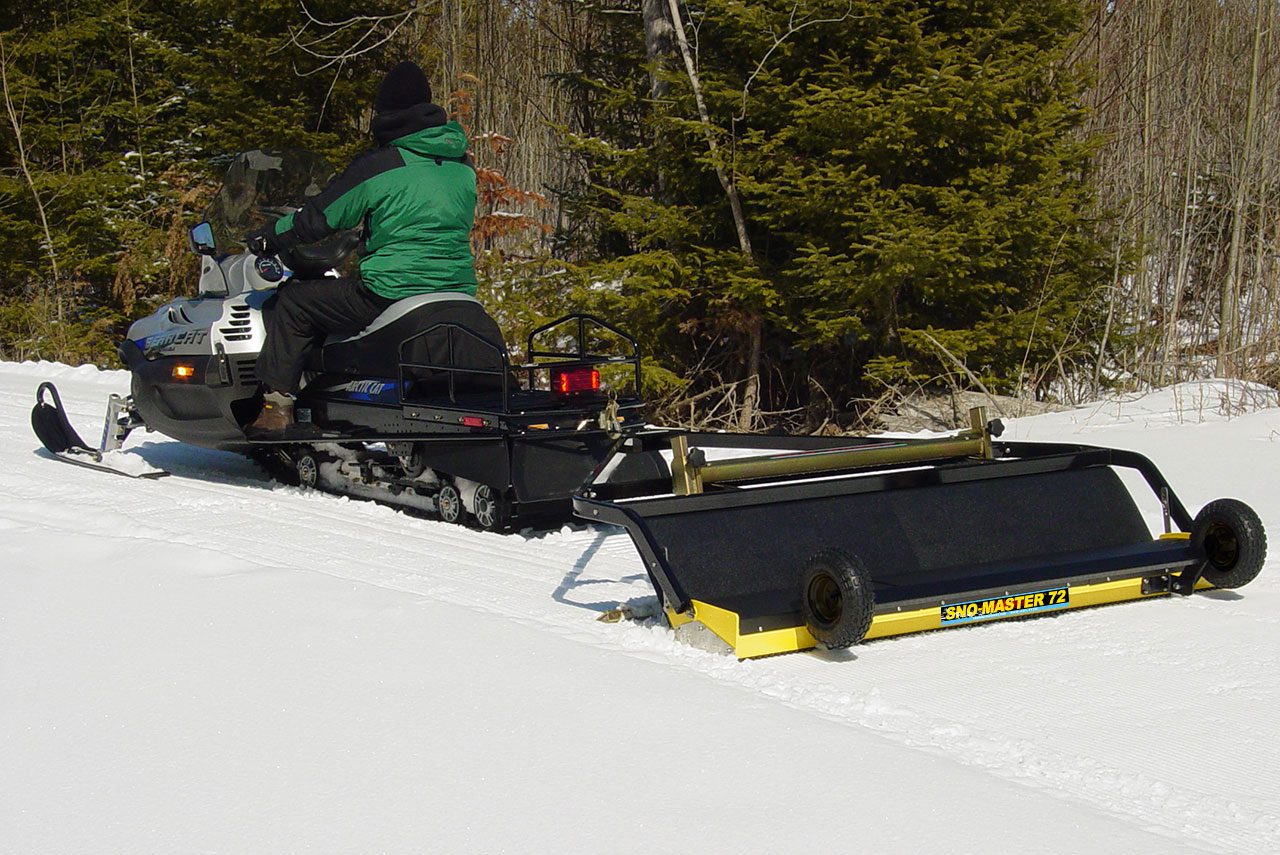

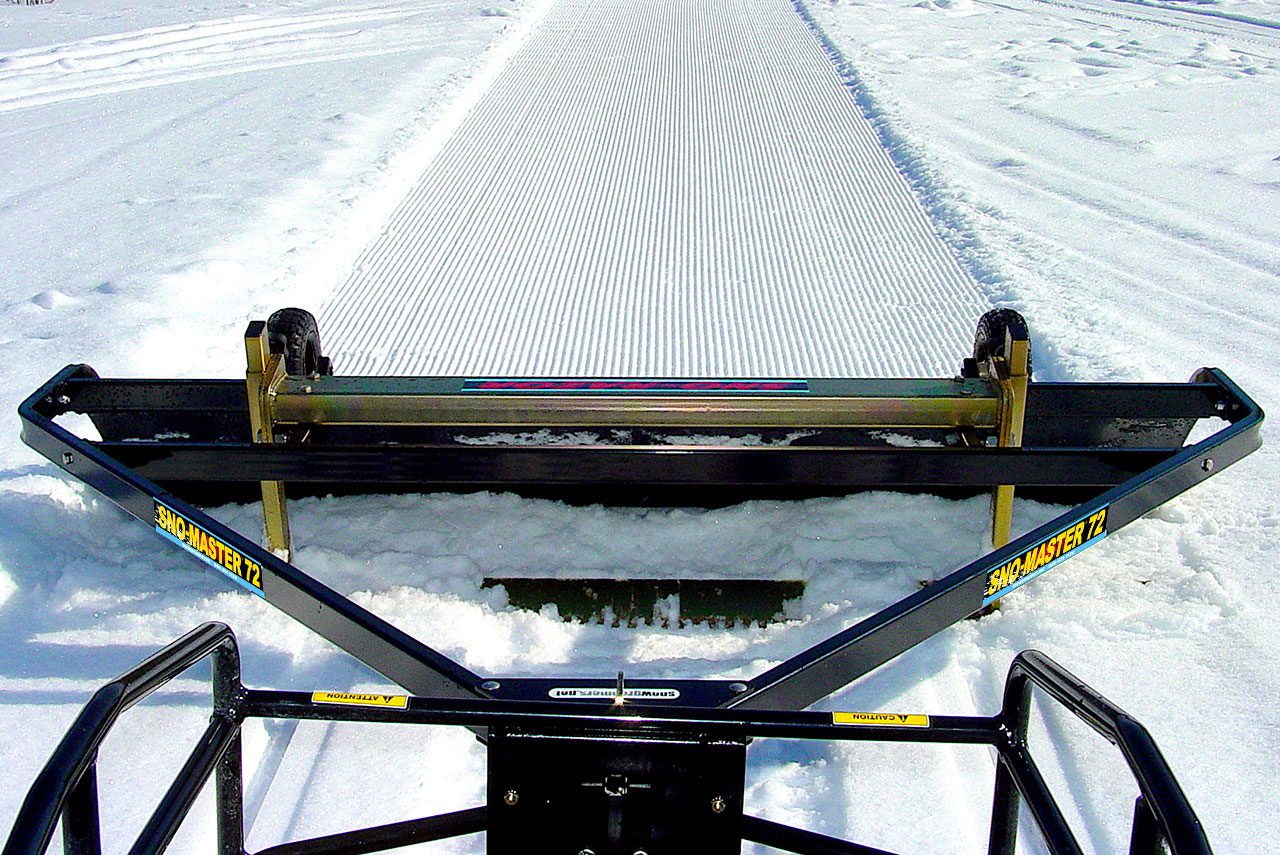

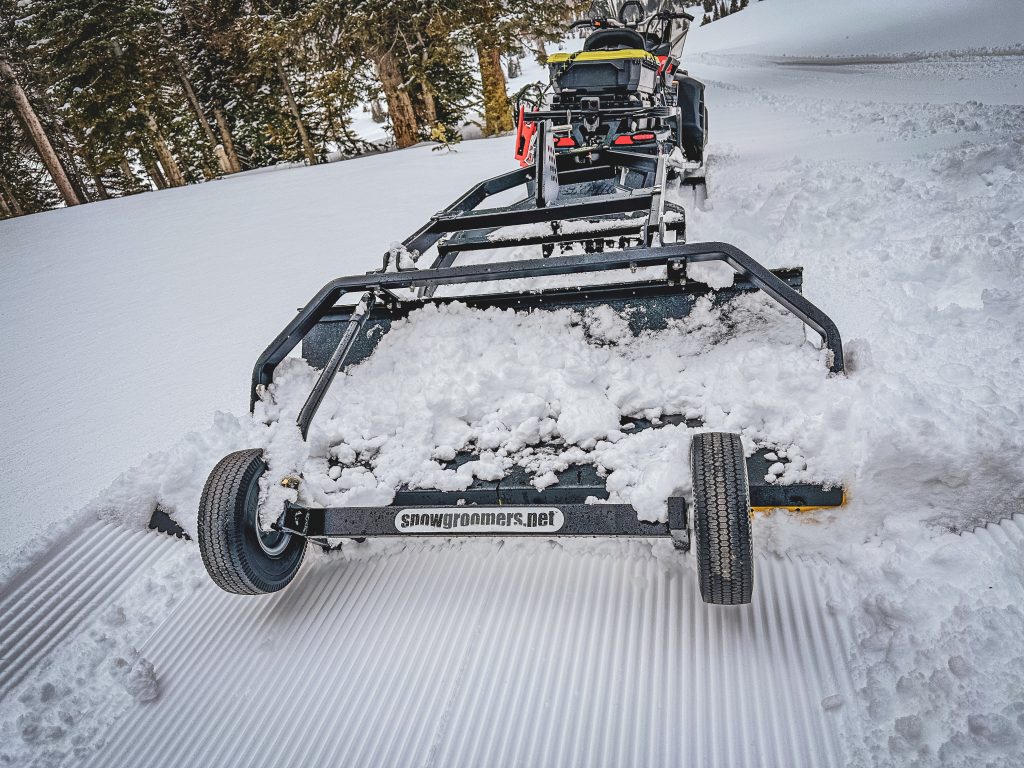

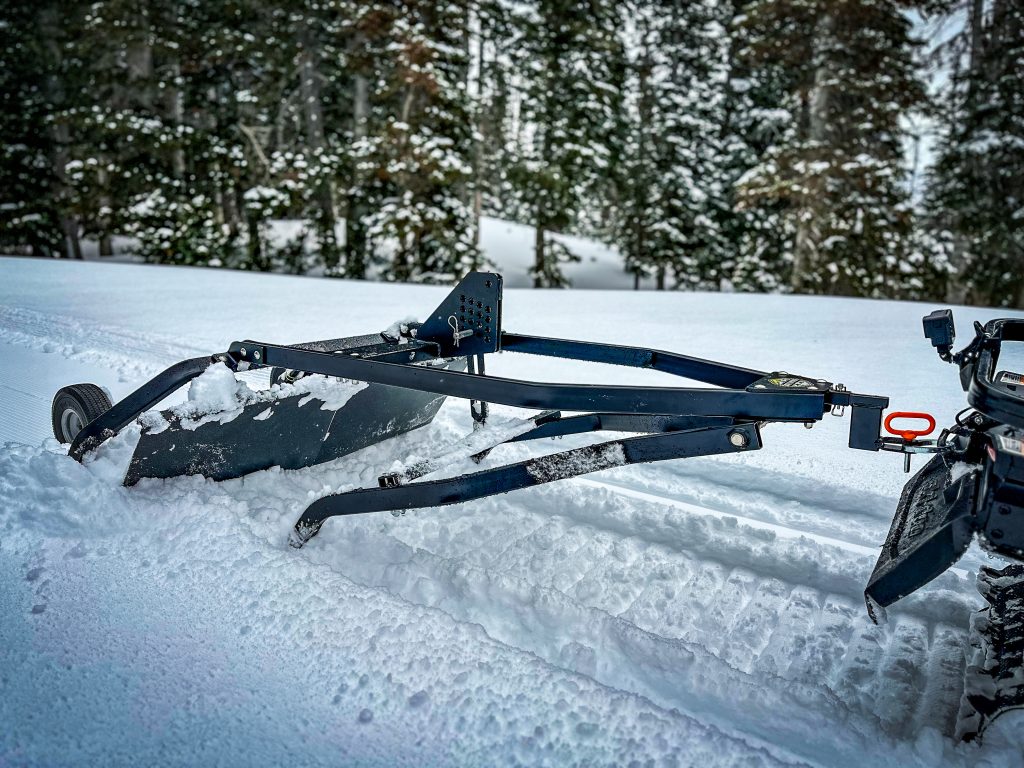

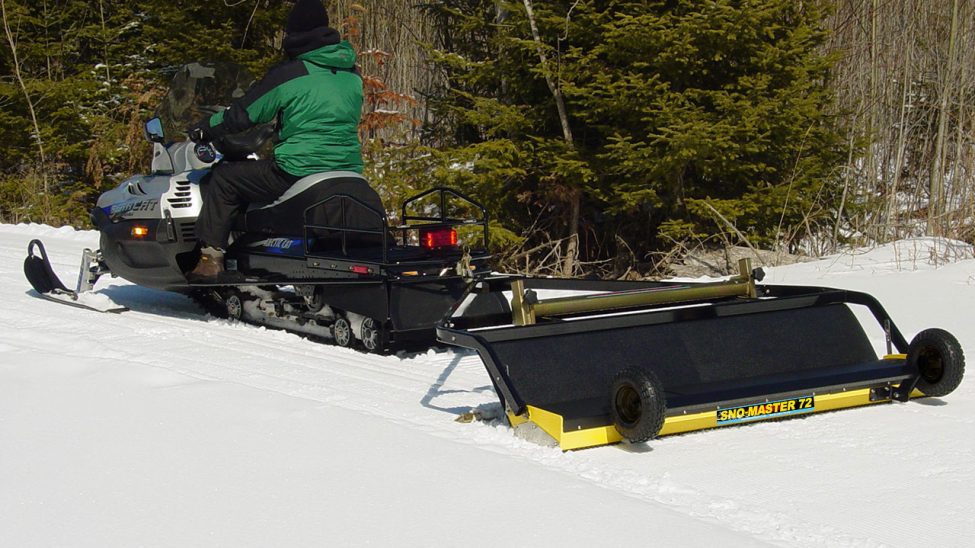

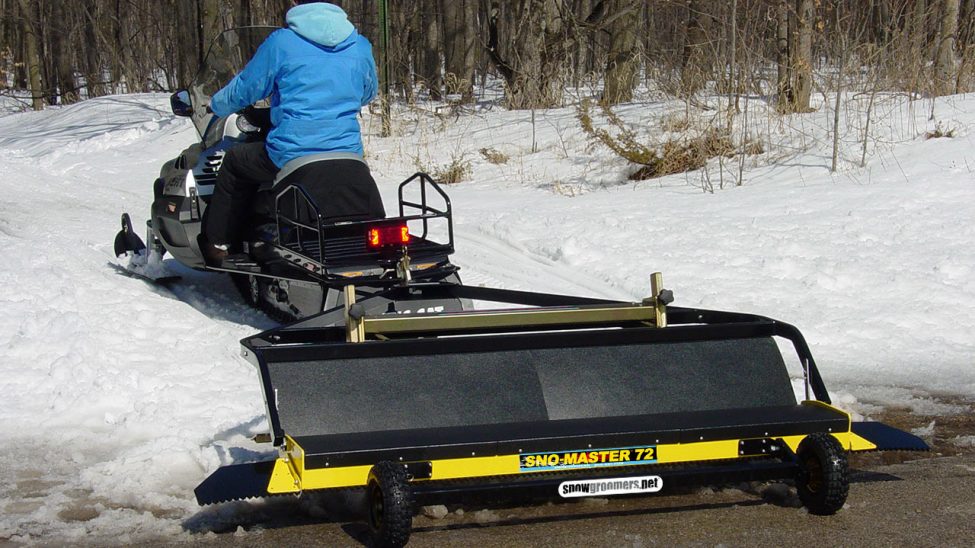

An optional Wheel Kit is available for this snow groomer if you have road crossings or the need to move in and out of a maintenance building.
Click and drag the image for a 360 degree view of a SNO-MASTER with SNO-RAZOR.
*Shown with optional 12″ Wing Set
SNO-MASTER® 72
Includes
#SM-7006P
-$50 Instant Bundle Savings
SNO-MASTER® 72 WING
Includes
#SM-7126P
-$50 Instant Bundle Savings
*Shown with optional 12″ Wing Set & SNO-RAZOR
SNO-MASTER® 72 WHEEL
Includes
#SM-7006P-WK
-$100 Instant Bundle Savings
*Shown with optional SNO-RAZOR
SNO-MASTER® 72 WING WHEEL
Includes
#SM-7126P-WK
-$150 Instant Bundle Savings
*Shown with optional 12″ Wing Set
SNO-MASTER® 72 RAZOR
Includes
#SM-7006P-RZ
-$200 Instant Bundle Savings
SNO-MASTER® 72 WING RAZOR
Includes
#SM-7126P-RZ
-$250 Instant Bundle Savings
*Shown with optional 12″ Wing Set
SNO-MASTER® 72 WHEEL RAZOR
Includes
#SM-7006P-WK-RZ
-$300 Instant Bundle Savings
SNO-MASTER® 72 WING WHEEL RAZOR
Includes
#SM-7126P-WK-RZ
-$300 Instant Bundle Savings
| SNO-MASTER 48 | SNO-MASTER 72 | |
|---|---|---|
| Grooming Width: | ||
| - without Wings | 48" (1219 mm) | 72" (1829 mm) |
| - with 12" Berm Wings | 56" - 60" (1422 mm - 1524 mm) | 80" - 84" (2032 mm - 2133 mm) |
| - with 12" Standard Wings | 60" - 72" (1524 mm - 1829 mm) | 84" - 96" (2133 mm - 2438 mm) |
| Length - Overall | 68" (1727 mm) | 79" (2007 mm) |
| Height - Overall | 16" (406 mm) | 16" (406 mm) |
| SNO-RAZOR Width | 48" (1219 mm) | 72" (1828 mm) |
| SNO-RAZOR Height Adjustment | Infinitely Adjustable | Infinitely Adjustable |
| SNO-RAZOR Angle Adjustment | 15 - 30 degrees | 15 - 30 degrees |
| Weight - empty w/12" Wings | 102 lbs (46.4 kg) | 168 lbs (76.4 kg) |
| Weight with SNO-RAZOR | 155 lbs (70.4 kg) | 234 lbs (106.4 kg) |
| Block Capacity (2" concrete blocks) | 99 lbs (45 kg) 6 | 132 lbs (60 kg) 8 |
| Total Maximum Weight | 254 lbs (115.4 kg) | 366 lbs (166.4 kg) |
| Chassis/Drawbar Material | Steel | Steel |
| SNO-RAZOR Material | Steel | Steel |
| Hardware | Stainless Steel | Stainless Steel |
| Recommended Towing Machines: | ||
| - Snowmobile | 15" wide, long-track (136"+) | 20" wide, long-track (154"+) |
| - ATV/UTV | Track Equipped | Track Equipped |
Specifications subject to change without notice.
