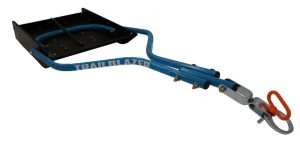

Ultra Light-Weight TRAILBLAZER XC
Sled Includes

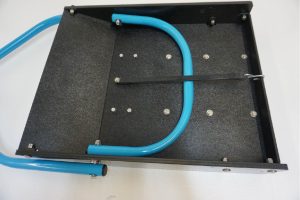

- 20″ HDPE & ABS Chassis

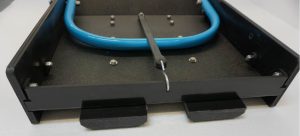

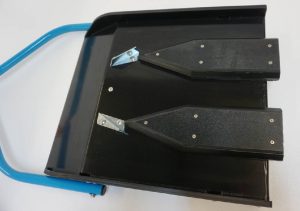

- Zinc Plated Track Cutter Set
- (2) Classic Track Setter

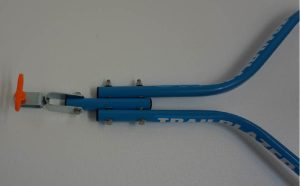

- 1″ Swivel Hitch

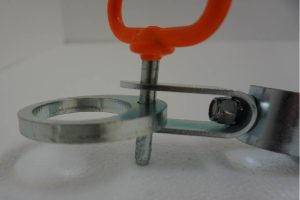

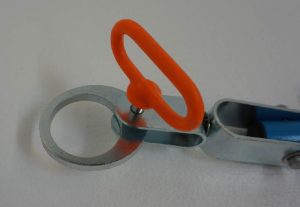

- Pin Coupler Ring Adapter

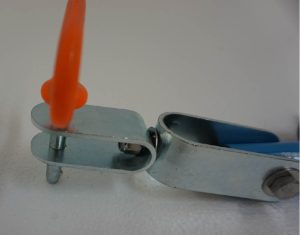

- 3/8″ Orange Handle Detent Pin
Need Help? Complete the Request Quote form to help design the perfect combination.
Or, scroll down to see the pricing on the TRAILBLAZER XC packages
The ultra light economical TRAILBLAZER XC 20 is primarily a fresh snow/soft snow groomer. Also towed behind nearly all snow machines available to form perfect tracks in many snow conditions. Super cost efficient. Cost efficient Classic ski trail maker.
#XC-S20SP
w/ 1″ Swivel Pin Coupler
w/ Pin Coupler Ring Adapter
The ultra light economical TRAILBLAZER XC 36 is primarily a fresh snow/soft snow groomer. Also towed behind nearly all snow machines available to form perfect tracks in many snow conditions. Super cost efficient. Cost efficient Classic ski trail maker.
#XC-S36SP
w/ 1″ Swivel Pin Coupler
w/ Pin Coupler Ring Adapter
Primarily used in fresh snow and soft snow, the TRAILBLAZER XC helps you make perfect classic ski tracks in all snow conditions. Making ski tracks that are perfect is easier with a TRAILBLAZER XC. Simple, rugged, light-weight and efficient snow groomer.

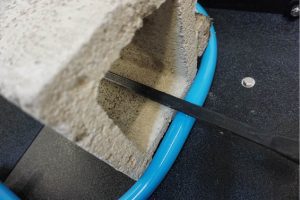

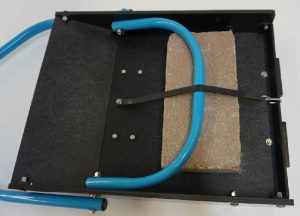

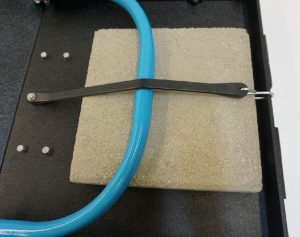

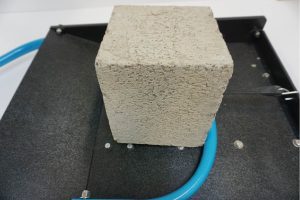

Locally purchased, solid cement blocks weight the sled for maximum compaction. Tested to hold up to 200 lbs (not that you will need that much weight) to offer you the flexibility to properly compact your trail for the best classic ski tracks. We recommend adding 40 lbs of cement block.

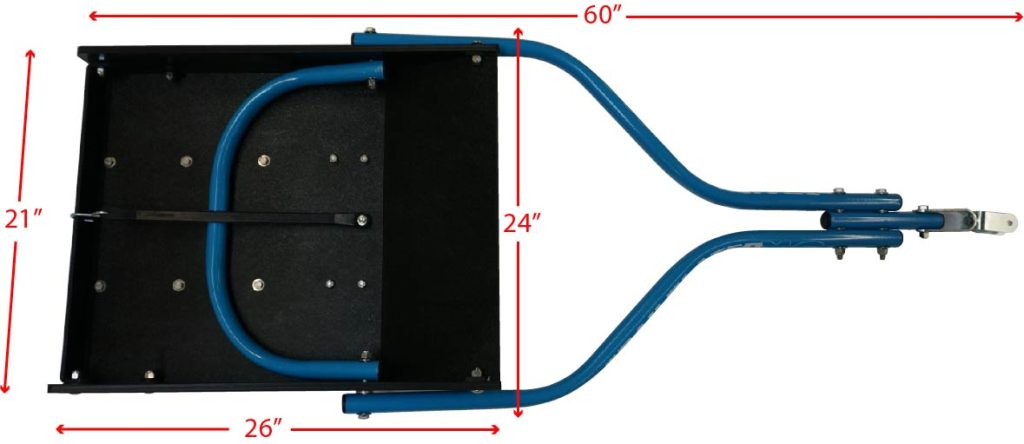

TRAILBLAZER XC 20 | TRAILBLAZER XC 36 | TRAILBLAZER | |
---|---|---|---|
Grooming Width: | |||
- without Wings | 20" (508 mm) | 36" (914 mm) | 20" (508 mm) |
Length - Overall | 60" (1524 mm) | 60" (1524 mm) | |
Height - Overall | 5" (127 mm) | 5" (127 mm) | 5" (127 mm) |
Weight: | |||
- without Blocks | 25 lbs (11 kg) | ||
- with 2 - 4" Blocks (72 lbs)* | 97 lbs (44 kg) | ||
- with 2 - 6" Blocks (110 lbs)* | 135 lbs (61 kg) | ||
Chassis/Drawbar Material | HDPE & ABS / Steel Alloy | HDPE & ABS / Steel Alloy | HDPE & ABS / Steel Alloy |
Hardware | Stainless Steel & Zinc Chromate | Stainless Steel & Zinc Chromate | Stainless Steel & Zinc Chromate |
Specifications subject to change without notice.
Part # | Price | ||
---|---|---|---|
TrailBlazer Cutter Plate | 300-1082 | $80 USD | |
TrailBlazer XC Cutter Set (Set of 2 / 1-LH, 1-RH)t | 300-1084 | $40 USD | |
ATV Universal Hitch 3/4″ | 300-1004 | $80 USD | |
UTV Universal Hitch 1″ | 300-1005 | $80 USD | |
TrailBlazer Swivel Coupler | 300-1070 | $30 USD | |
3/8" Orange Handle Detent Pin | 300-1003 | $15 USD | |
TrailBlazer Comb | 300-1086 | $100 USD | |
TrailBlazer XC Track Mold | 300-1088 | $40 USD (per Mold) |
Specifications subject to change without notice.
