Description
The 12-inch wing set adds 24 inches to the groomed path: 12 inches on the left and 12 inches on the right. The wings are flexible, so they smooth the transition from the groomed surface to the ungroomed snow and take the hard edge off the trail. That matters if skis or bike tires are catching that edge.
These wings are a genuine part, made for our groomers in Springville, Utah. Free shipping to the US, Alaska, and Canada on orders of $1,000 or more.

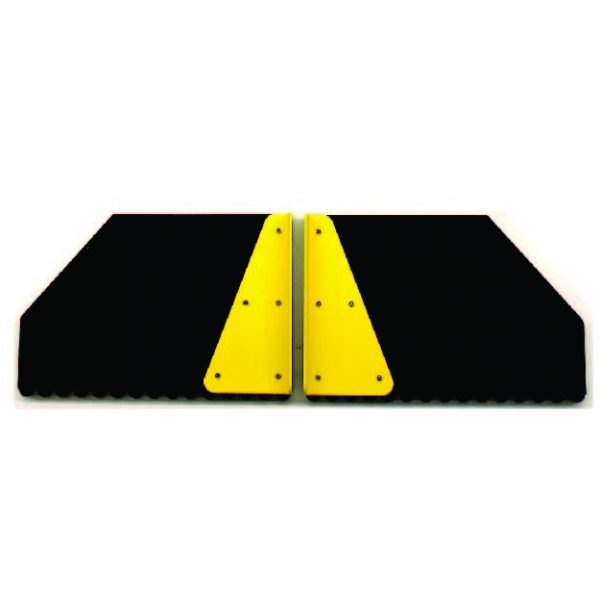

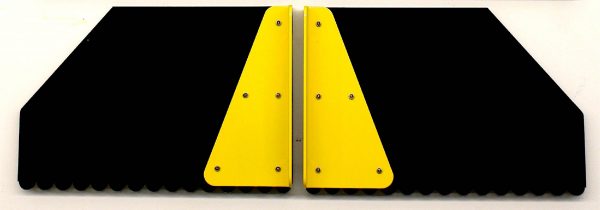

What is in the set

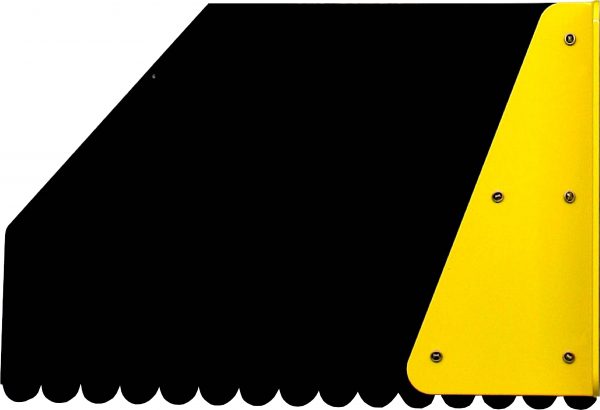

- (1) Left wing and bracket

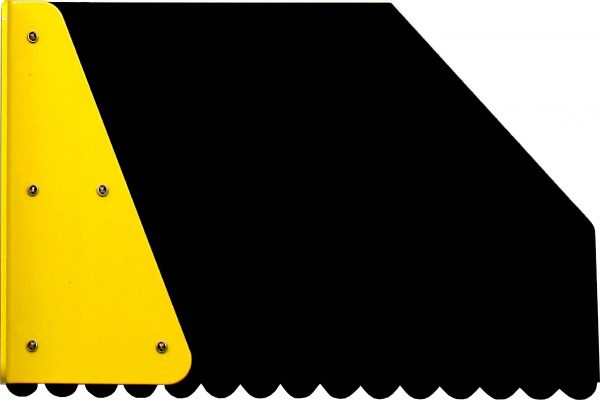

- (1) Right wing and bracket
- (4) 1/4-20 x 7/8″ stainless steel hex bolts
- (4) 1/4-20 stainless steel nylock nuts
Mounting hardware comes with the set. You do not need a separate bolt kit for a standard install.
Specs
- Wing size: 12″ × 8″ × 1/4″
- Wing material: urethane
- Bracket: safety-yellow powder-coated carbon steel
- Hardware: stainless steel 1/4-20 bolts and nylock nuts, as listed above
- SKU: 300-1012
What the wings do
A groomer without wings leaves a cleaner center path, but the sides can drop off sharply. The 12-inch wings feather that edge. Because they are urethane, they can flex instead of acting like a hard wall, which helps when the trail is uneven or when you are blending into unpacked snow.
Together, the two wings add 24 inches of groomed width. On a 48-inch chassis, that is a noticeably wider finished path for wagons, sleighs, skis, or bikes, without changing the groomer itself.
What they fit
The 12-inch wing set fits SNO-MASTER, PATH-MASTER, TRAKOR, and SNO-BLASTER chassis. See the SNO-MASTER 48, PATH-MASTER, TRAKOR, and SNO-BLASTER if you are matching a machine.
12-inch wings vs the 6-inch set
Both sets use urethane wings and safety-yellow powder-coated steel brackets, and both include the same style of stainless hardware: a left and right wing with bracket, plus four 1/4-20 × 7/8″ hex bolts and four nylock nuts.
- 12″ Wing Set: each wing is 12″ × 8″ × 1/4″, and the pair adds 24 inches to the groomed path. Fits SNO-MASTER, PATH-MASTER, TRAKOR, and SNO-BLASTER.
- 6″ Wing Set: each wing is 6″ × 8″ × 1/4″, and the pair adds 12 inches to the groomed path.
Choose 12 inches when you want the wider blended edge and your machine is one of the chassis listed above. Choose 6 inches if you only need a smaller fade at the edge of the trail.
Need help matching a set to your groomer? See Parts & Accessories or request a quote. Assembly help is on the groomer assembly page.
Frequently asked questions
How much width do 12-inch wings add?
24 inches in total: 12 inches on the left and 12 inches on the right.
What is included?
One left wing and bracket, one right wing and bracket, four 1/4-20 × 7/8″ stainless steel hex bolts, and four 1/4-20 stainless steel nylock nuts.
What machines do they fit?
SNO-MASTER, PATH-MASTER, TRAKOR, and SNO-BLASTER chassis.
