path-master narrow trail snow groomer

PATH-MASTER®

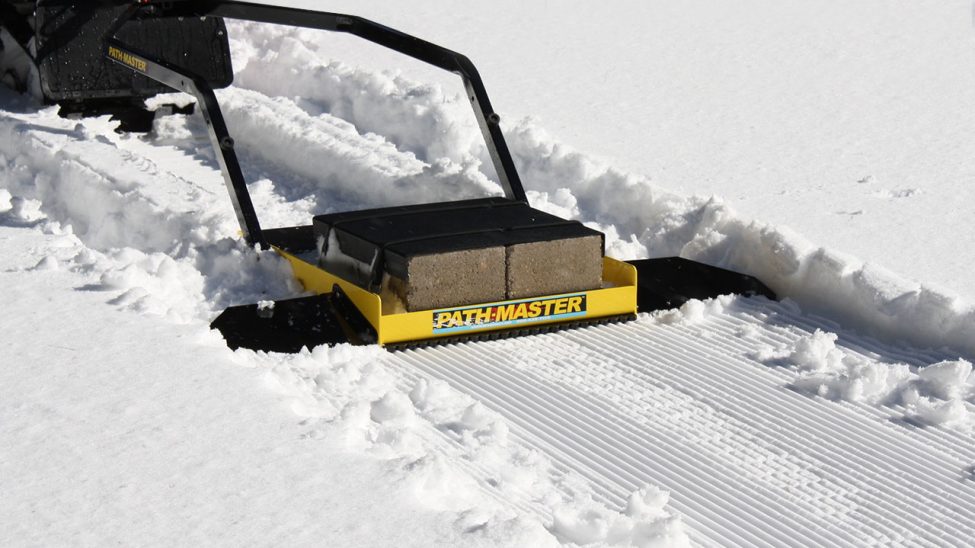

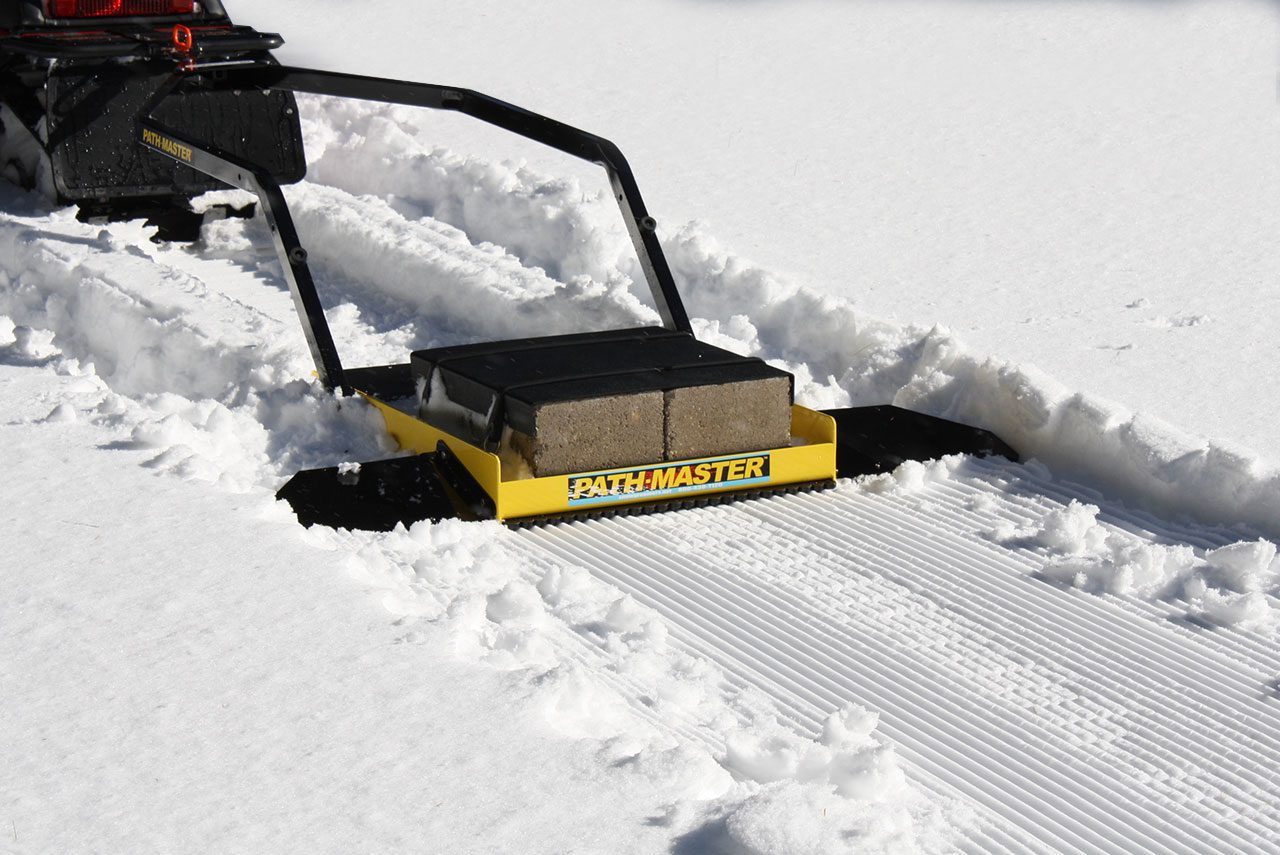

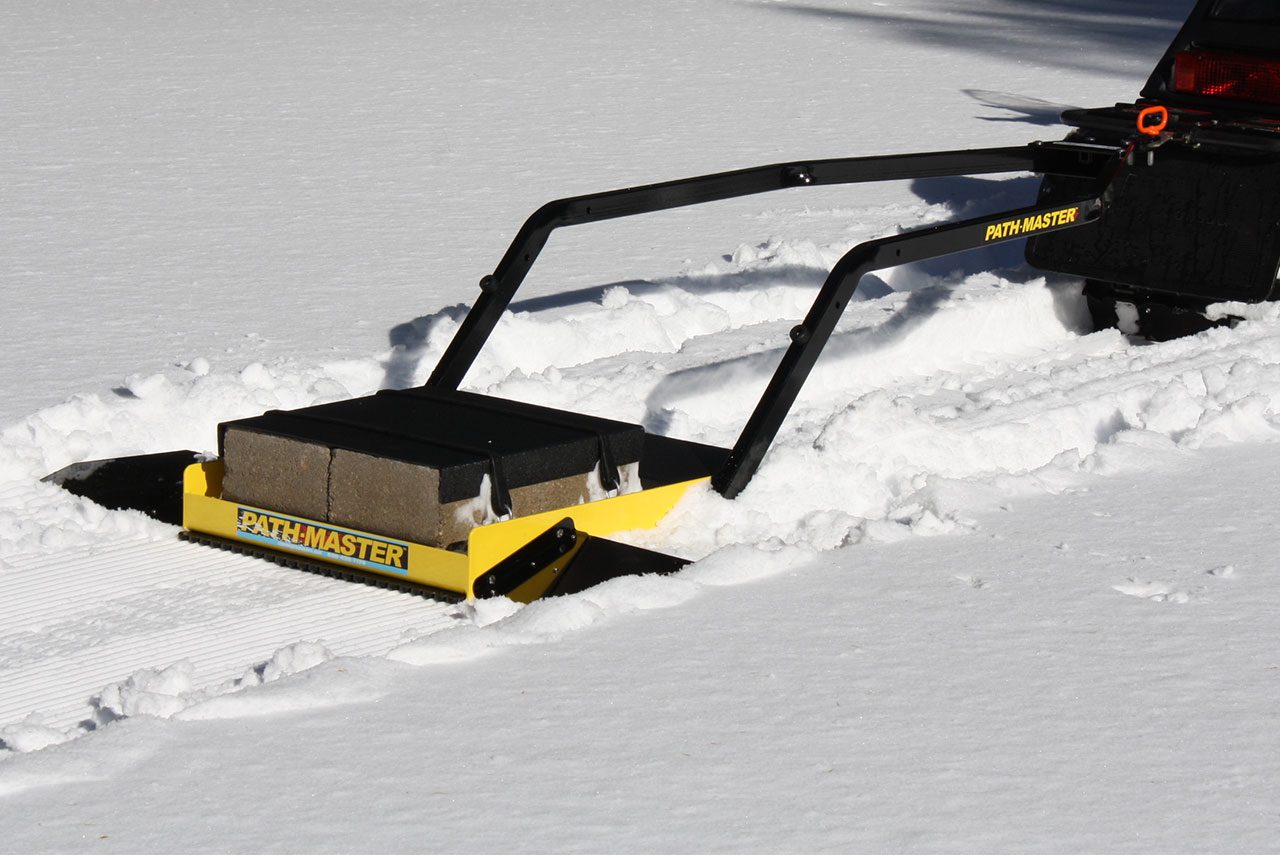

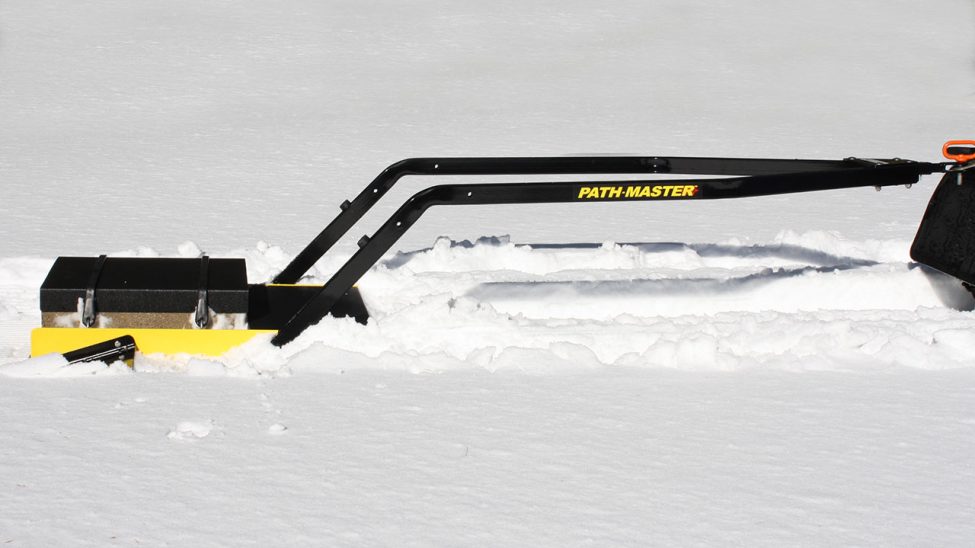

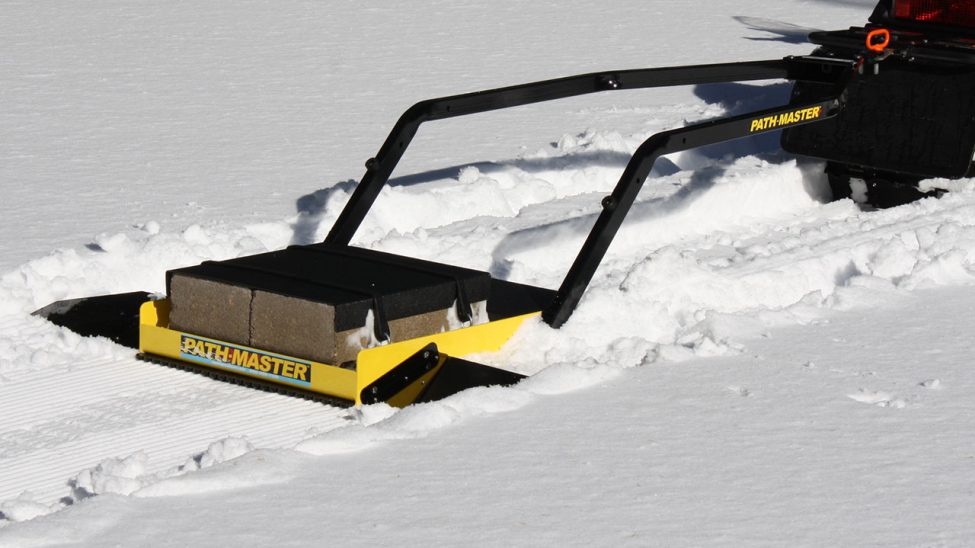

Designed for a variety of narrow trail snow sports, the economical PATH-MASTER will compact all types of snow quickly and efficiently. Based on our tried and true TRAKOR® Loppet 60, this rugged little groomer is commonly pulled by a 15” wide, long-tracked snowmobile.



Need Help? Complete the Request Quote form to help design the perfect combination.

PATH-MASTER® w/ PM Standard Drawbar

PM Standard Pkg

#PM-S006P

w/ 6in STD PIN Coupler



$1,399.95

PM Standard Pkg

#PM-S006R

w/ 6in RING Coupler



$1,399.95

PM WING Pkg

#PM-S126P

w/ 6in STD PIN Coupler

w/ 12in Wing Set

$1,529.95

PM WING Pkg

#PM-S126R

w/ 6in RING Coupler

w/ 12in Wing Set

$1,529.95

PATH-MASTER® w/ LOPPET 60 Drawbar & 12" Wing Set

PM Path-Master Wing Pkg

#PM-L126P

w/ Path-Master 60 Drawbar

w/ 6in STD PIN Coupler

w/ 12in Wing Set

$1,599.95

PM Path-Master Wing Pkg

#PM-L126R

w/ Path-Master 60 Drawbar

w/ 6in RING Coupler

w/ 12in Wing Set

$1,599.95

PATH-MASTER® w/ BEST-LINE 76 Drawbar & 12" Wing Set

PM BEST-LINE Pkg

#PM-B126P

w/ BEST-LINE 76 Drawbar

w/ 6in STD PIN Coupler

w/ 12in Wing Set

$1,729.95

PM BEST-LINE Pkg

#PM-B126R

w/ BEST-LINE76 Drawbar

w/ 6in RING Coupler

w/ 12in Wing Set

$1,729.95

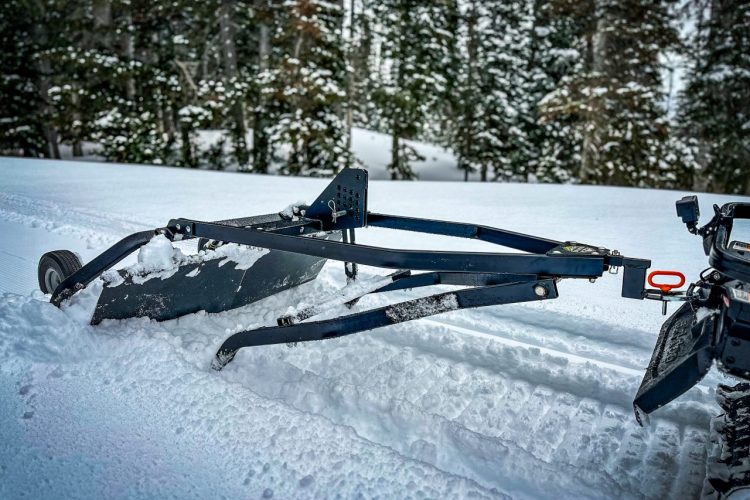

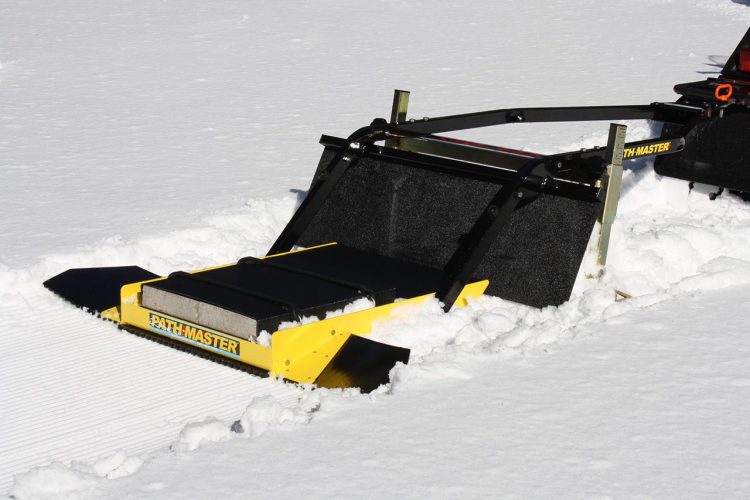

PATH-MASTER® w/ SNO-RAZOR 36 & 12" Wing Set

PM SNO-RAZOR

#PM-R126P

w/ Loppet 60 Drawbar

w/ 6in Pin Coupler

w/ 36″ SNO-RAZOR

$2,999.95

PM SNO-RAZOR

#PM-R126R

w/ Loppet 60 Drawbar

w/ 6in RING Coupler

w/ 36″ SNO-RAZOR

$2,999.95

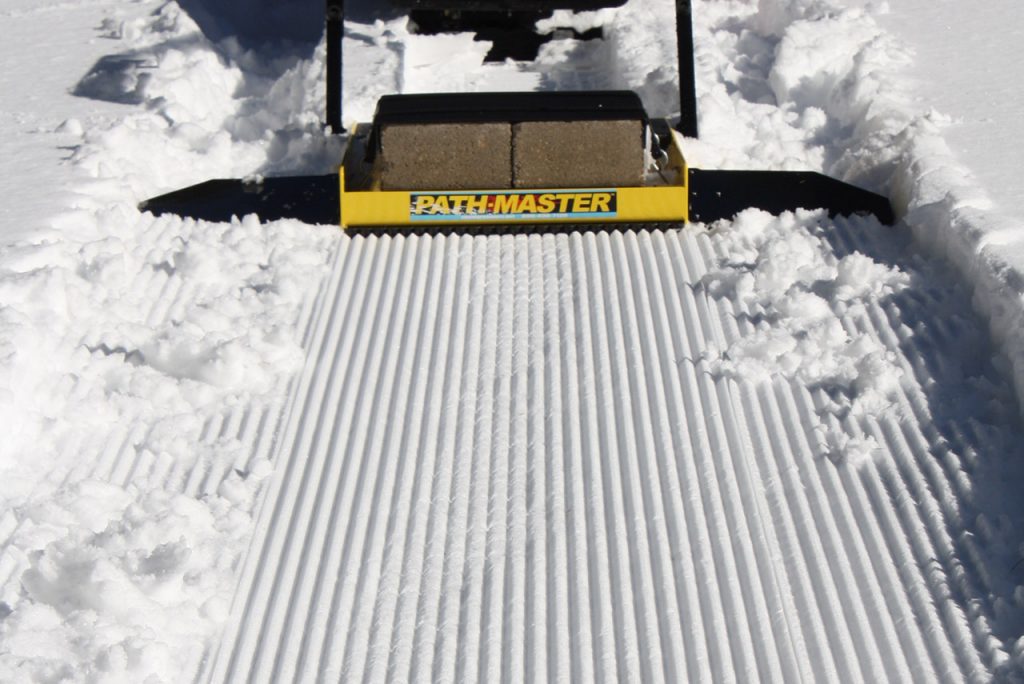

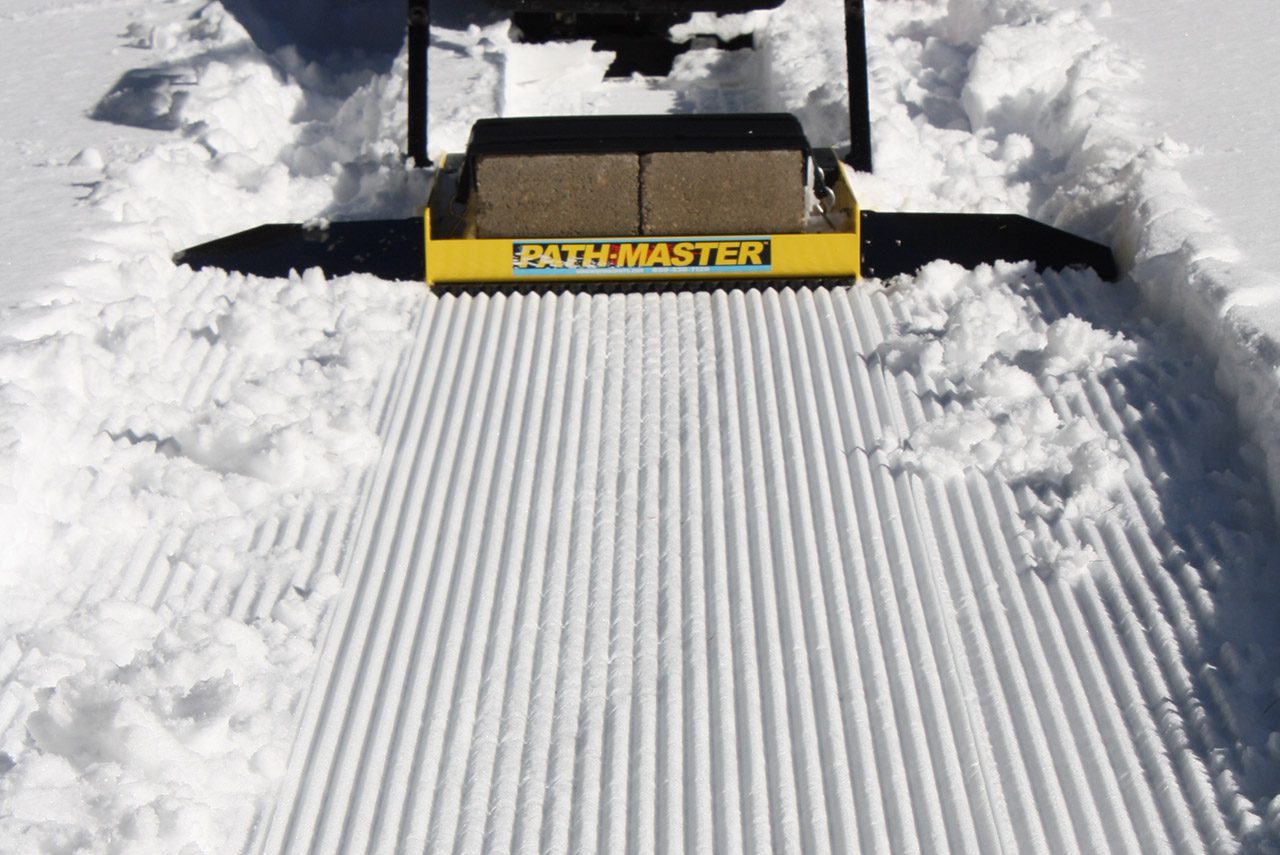

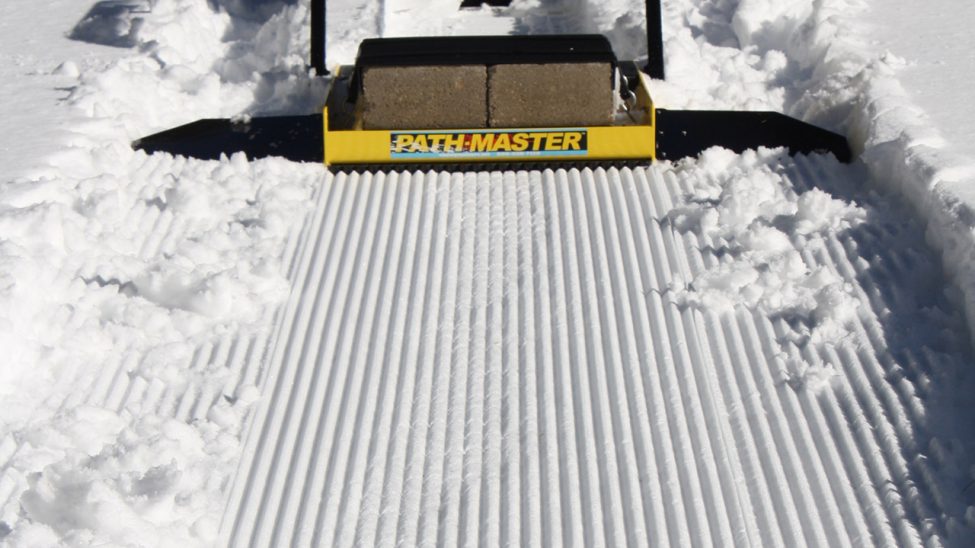

Your choice of four different wing sets allows you to groom from 32” – 44” trail widths. Locally purchased solid concrete blocks weight the compaction pan, while the urethane snow comb aligns and compacts the snow crystals into a perfect corduroy pattern with 15 grooves per foot.

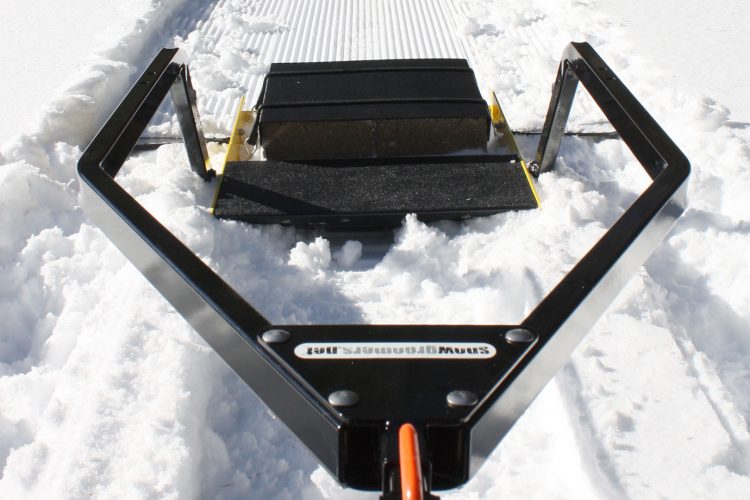

Built to last a lifetime from jig-welded heavy gauge steel, the sled is then sandblasted, primed and powder coated. The all steel drawbar features a breakaway coupler that protects both the operator and groomer from hidden obstacles.

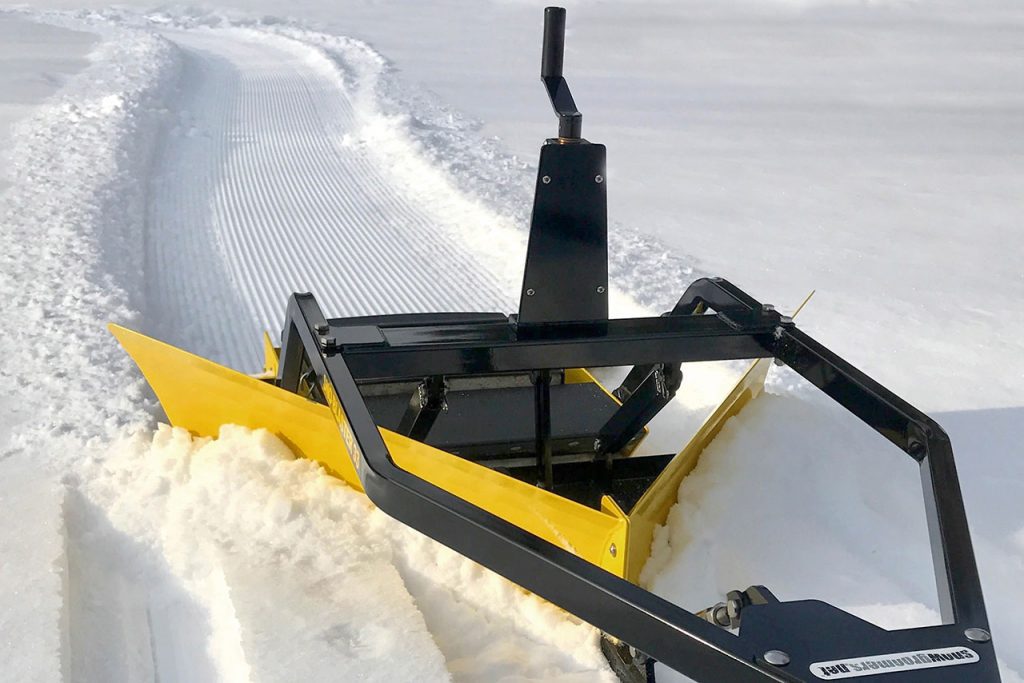

Two bolt on options, the 36” SNO-RAZOR® or the 33” wide V-Plow can be added to expand your grooming capabilities in the future.

Narrow Trail Groomer Specifications

 PATH-MASTERPATH-MASTER w/SNO-RAZORSNO-BLASTER
Grooming Width:
- without Wings 20" (508 mm) 20" (508 mm) 20" (508 mm)
- with 12" Berm Wings 32" (812 mm) 32" (812 mm) 32" (812 mm)
- with 6" Wings 33" (838 mm) 33" (838 mm) 33" (838 mm)
- with 8" Wings 36" (914 mm) 36" (914 mm) 36" (914 mm)
- with 12" Standard Wings40" - 44" (1016 - 1118 mm)40" - 44" (1016 - 1118 mm)40" - 44" (1016 - 1118 mm)
Drawbar Length 60" (1524 mm) 60" (1524 mm) 60" (1524 mm)
Length - Overall 79" (2006 mm) 79" (2006 mm) 79" (2006 mm)
Height - Overall15" (381 mm)22" (559 mm)29" (737 mm)
Weight with 12" Wings:
- without Blocks71 lbs (32 kg)112 lbs (51 kg)140 lbs (64 kg)
- with 2 - 4" Blocks (72 lbs)*143 lbs (65 kg)184 lbs (84 kg)212 lbs (96 kg)
- with 2 - 6" Blocks (110 lbs)*181 lbs (82 kg)222 lbs (101 kg)250 lbs (114 kg)
V-Plow WidthXX33" (838 mm)
Height AdjustmentX5" (127mm)5" (127mm)
Chassis/Drawbar MaterialSteelSteelSteel
SNO-RAZOR/V-Plow MaterialSteelSteelSteel
HardwareStainless SteelStainless SteelStainless Steel
Recommended Towing Machines:
- Snowmobile15" wide, long-track (136"+)15" wide, long-track (136"+)15" wide, long -track (136"+)
- ATV/UTVTrack EquippedTrack EquippedTrack Equipped
*Solid Concrete Blocks 8" x 16"

Specifications subject to change without notice.

PATH-MASTER Replacement Parts & Accessories

  Part #Price
Wings
6" Wing Set (1-6" RH Wing + 1-6" LH Wing)200-5010$149.99
Sale: $99
8" Wing Set (1-8" RH Wing + 1-8" LH Wing)200-5020$179.99
Sale: $109
12" Berm Wing Set (1-12" RH Wing + 1-12" LH Wing)200-5040$199.99
Sale: $119
12" Wing Set (1-12" RH Wing + 1-12" LH Wing)300-1012$199.99
COUPLERS & HITCHES
ATV Universal Hitch 3/4″300-1004$79.99
UTV Universal Hitch 1″300-1005$89.99
SNO-MASTER Rear Hitch300-1006$99.99
Snow Groomer hitch couplers6″ Standard Pin Coupler w/ Detent Pin300-1060$59.99
Ring type Pintle Hook6″ Ring Coupler300-1061$49.99
6″ Standard Pin Coupler – 3″ Offset w/ Detent Pin300-1062$89.99
6″ Ring Coupler – 3″ Offset300-1063$79.99
6″ Standard Pin Coupler – 5″ Offset w/ Detent Pin300-1064$109.99
6″ Ring Coupler w/ 5″ Offset300-1065$99.99
PLASTICS-COMBS
20″ Urethane Comb300-2004$99.99
SNO-BLASTER/PATH-MASTER Sled Skin300-2005$29.99
20″ Chassis Bow Cover300-2006$29.99
20″ Chassis Weight Cover (w/ 2-15″ Rubber Straps)300-2007$39.99
PATH-MASTER/SNO-BLASTER Lower Weight Cushion300-2008$19.99
20″ Chassis Side Weight Cushion (Set of 2)300-2009$9.99
20″ Chassis End Weight Cushion300-2010$10.99
36″ Deflector PC/ABS Panel300-6007$59.99
DRAWBARS - SUB-FRAMES - HITCH PLATES
20″ Drawbar Spreader300-1020$99.99
Sale: $50.00
STANDARD 44 Drawbar300-2024$199.99
PATH-MASTER Drawbar (RH and LH)300-2025$489.99
20″ Hitch Plate Assembly300-2026$79.99
36″ Deflector Bracket300-6004$159.99
HARDWARE
.093 Hitch Pin (Set of 2)300-1002$2.99
3/8" Orange Handle Detent Pin300-1003$14.99
Thumb Screws (Set of 3 10-32)300-5003-1$4.99
SNO-RAZOR
36″ Cutter Assembly300-6001$679.99
36″ SNO-RAZOR w/Deflector & Sub-Frame100-3010$1,400.00
SNO-RAZOR 36/48 Cross Tube300-6010$139.99
SNO-RAZOR 36/48 Pivot Plate (Right)300-6012$79.99
SNO-RAZOR 36/48 Pivot Plate (Left)300-6013$79.99
SNO-RAZOR 36/48 Shear Bolts/Nuts (Set of 2)300-6014$4.99
SNO-RAZOR 36/48 Leg300-6018$79.99
SNO-RAZOR Fluted Handle Locking Screw300-6020$19.99
Magnetic Base Angle Indicator300-6021$9.99

Specifications subject to change without notice.
