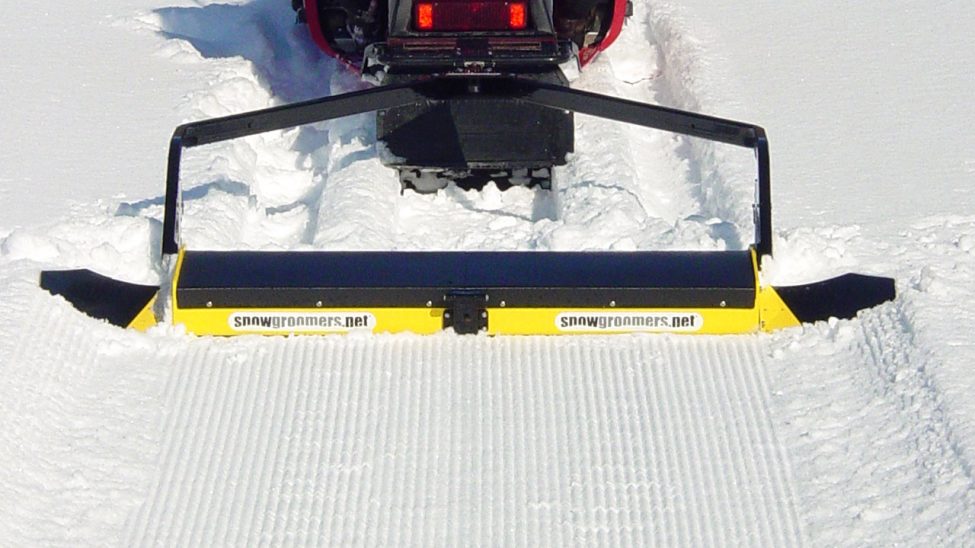

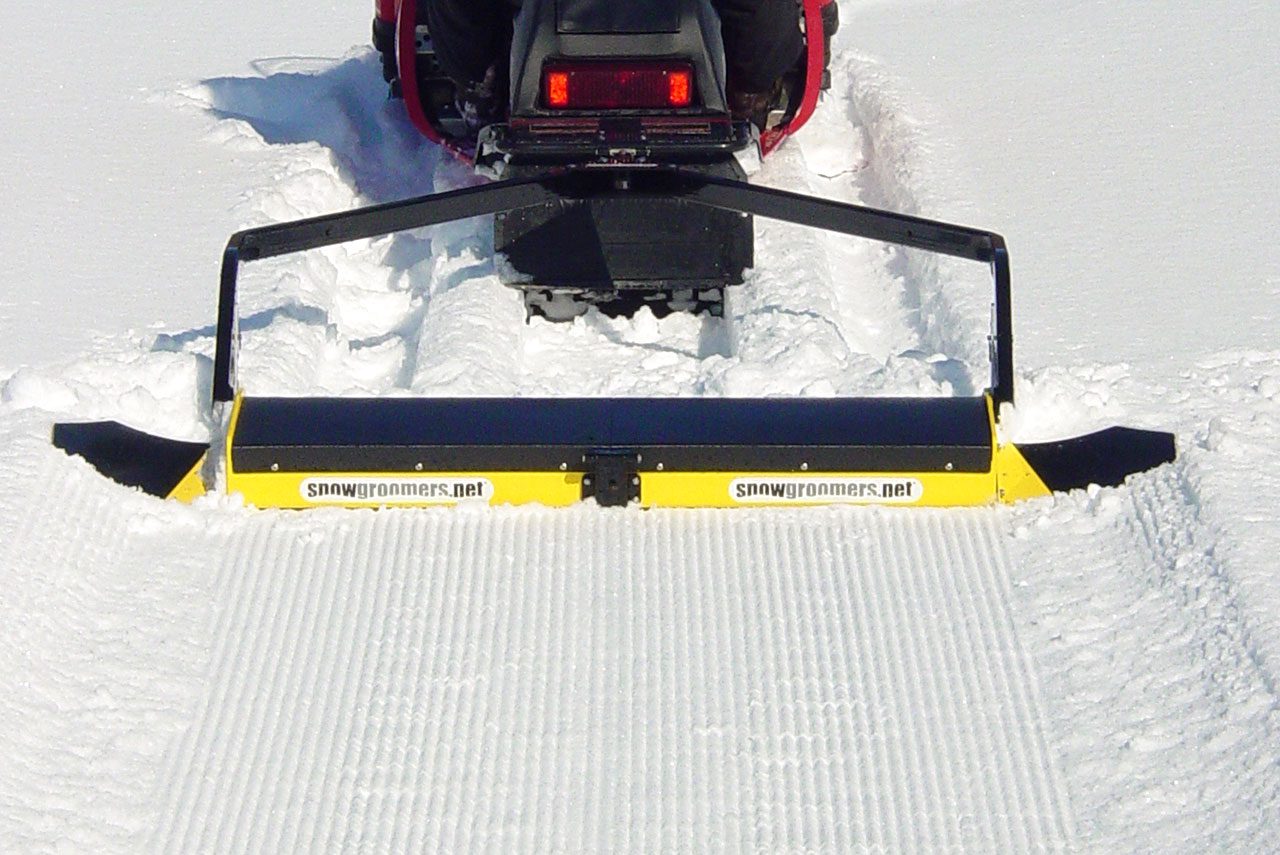

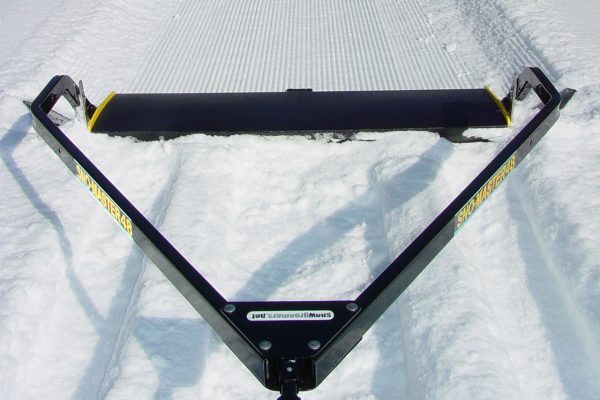

Look at the nice corduroy left by this snow groomer.

SNO-MASTER® 48

The SNO-MASTER 48 is the #1 selling lightweight groomer because of its versatility, cost, and ease of use (SCROLL DOWN TO SEE PRICE). Commonly used for snowmobile, dog sled, cabin access, ski-in/ski-out, sledding, skiing, tubing plus a variety of other trails. If you have snow that you want to level and compact, the SNO-MASTER 48 will do it more efficiently than any other groomer. The most efficient way to groom in lots of snow conditions is with an SNO-RAZOR and 12″ wings attached. The SNO-RAZOR cuts and levels out drifts and whoops. The wings help keep the deep snow from falling into the groomed path. Adding a Wheel kit allows you to move it around easily.

Need Help? Complete the Request Quote Form to help design the perfect combination.

Or, scroll down to see the pricing on the SNO-MASTER 48 packages

From powder to slush and every type of snow in between, this rugged little groomer does it all. It’s easier to pull and operates at higher speeds, which means a smaller towing machine and more time to enjoy your winter activities. The 48″ groomer is good for cross country skiing, dog sled, cabin access, ski-in/ski-out, sledding, tubing, snowmobile, etc. Best selling snow groomer because it does so much.

Wings

If you just want to compact your trails, the basic SNO-MASTER 48 is all you need. A Standard 12” Wing Set is included, or substitute 12” Berm Wings to form tubing lanes. The break-away coupler set includes a flat coupler to set compaction angle, plus 3” & 5” offset couplers to increase compaction angle for fresh snow.

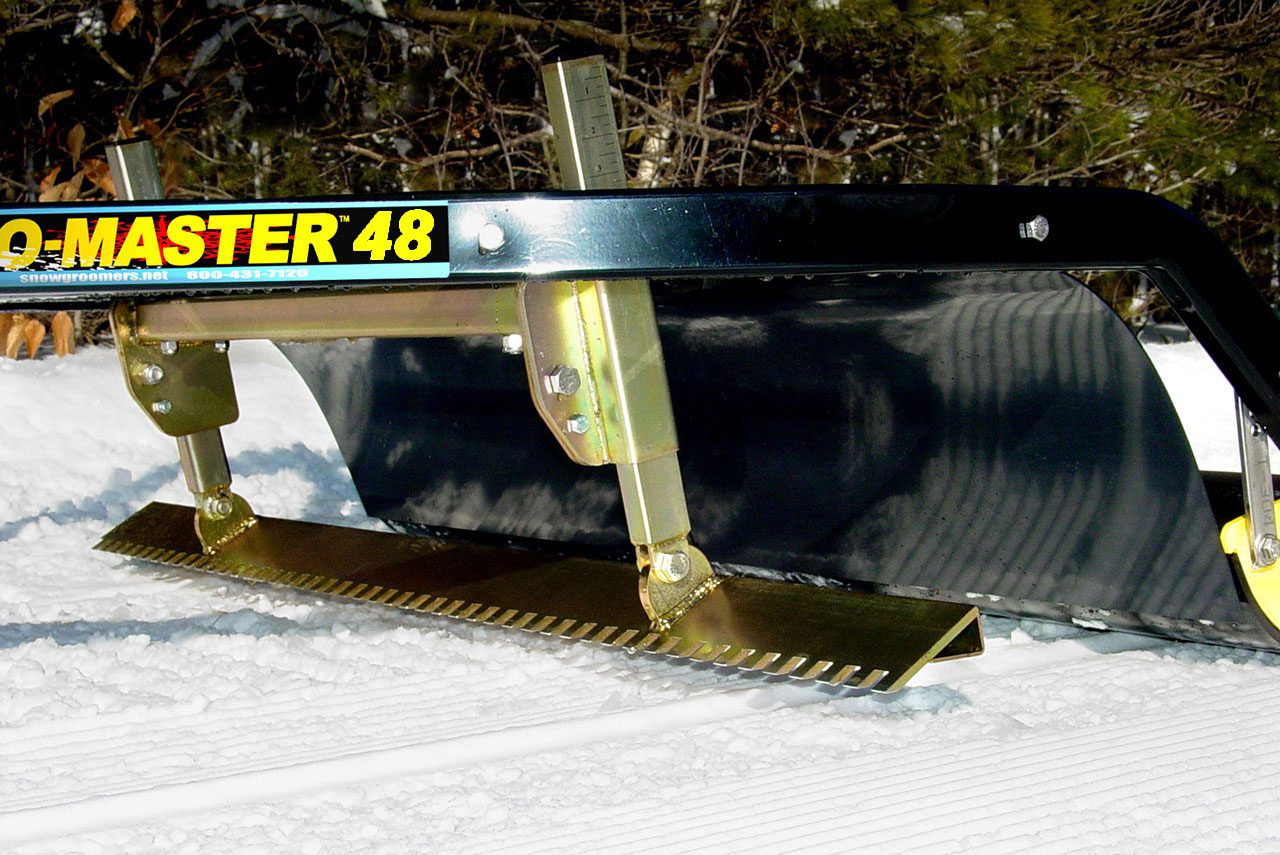

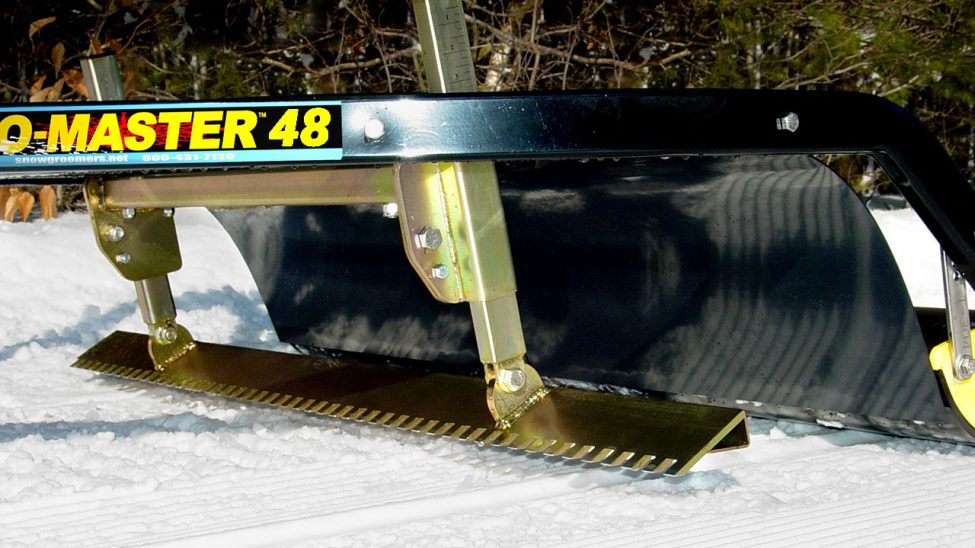

Want to level your trails and leave a perfect corduroy in all snow conditions? The optional SNO-RAZOR with subframe and snow deflectors attaches with just 8 bolts and is included with 9 out of every 10 SM48’s we sell.

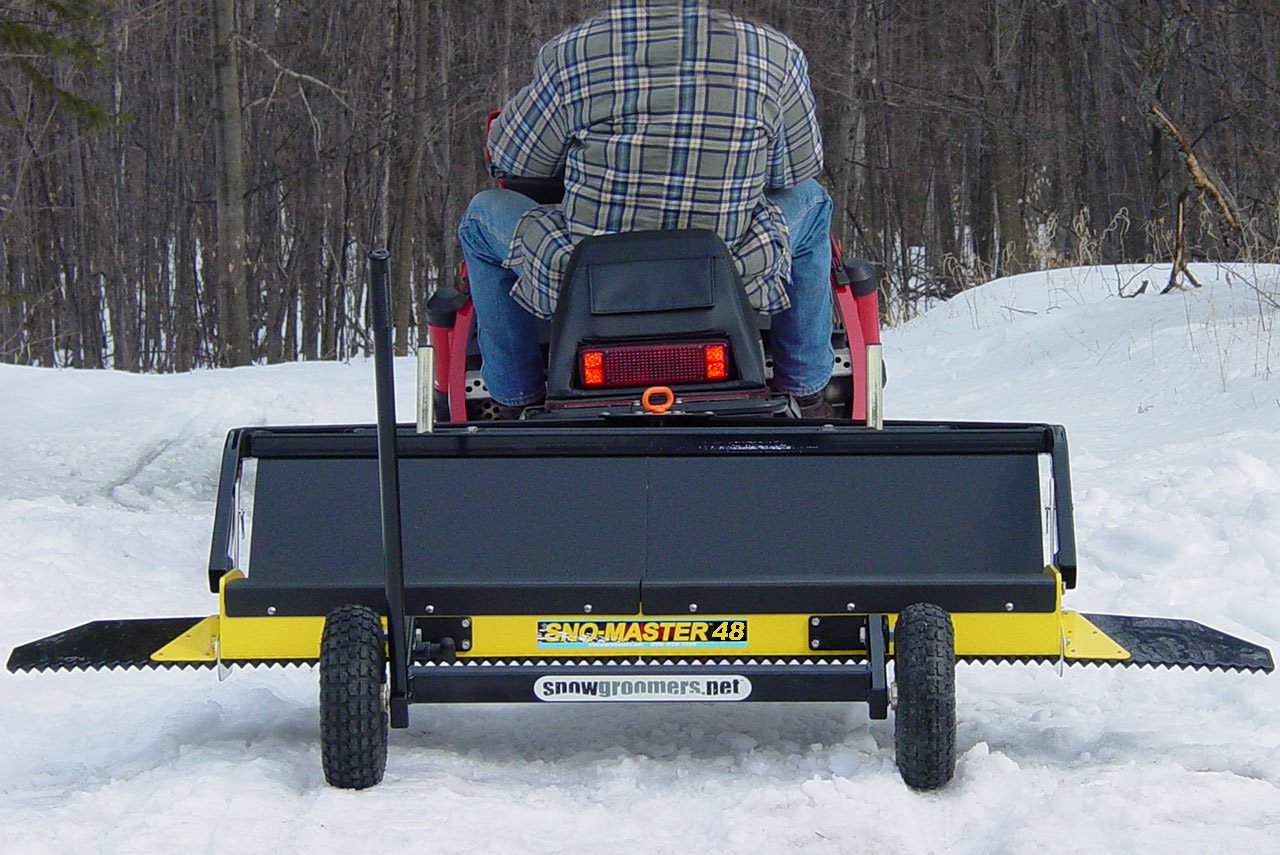

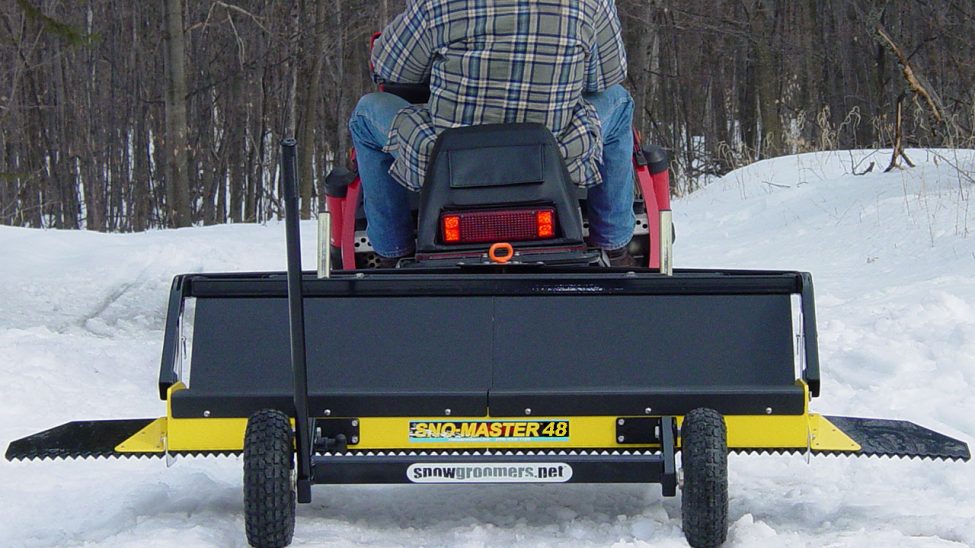

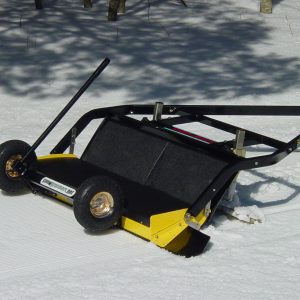

Do you have road crossings or the need to move in and out of a maintenance building, simply bolt on the optional SM48 Wheel Kit.

Best Selling Snow groomer.

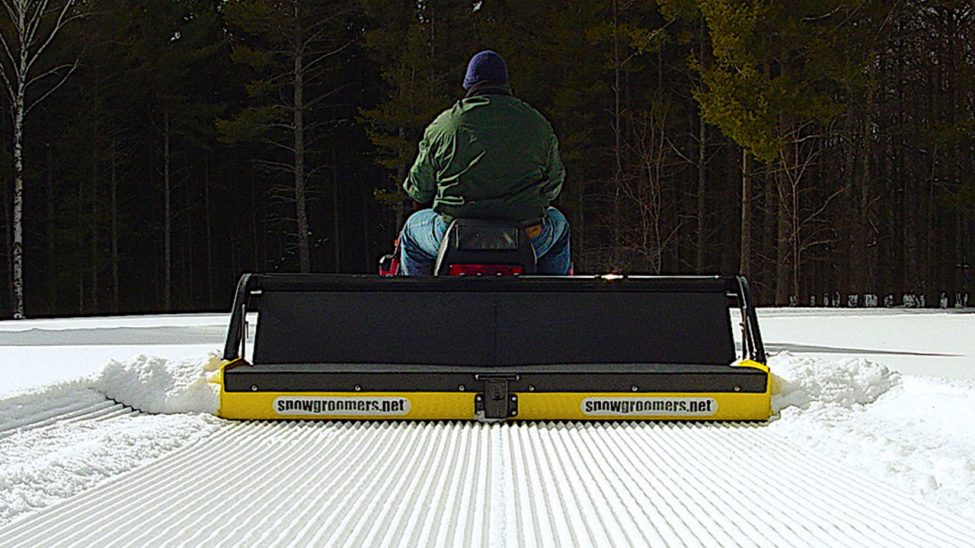

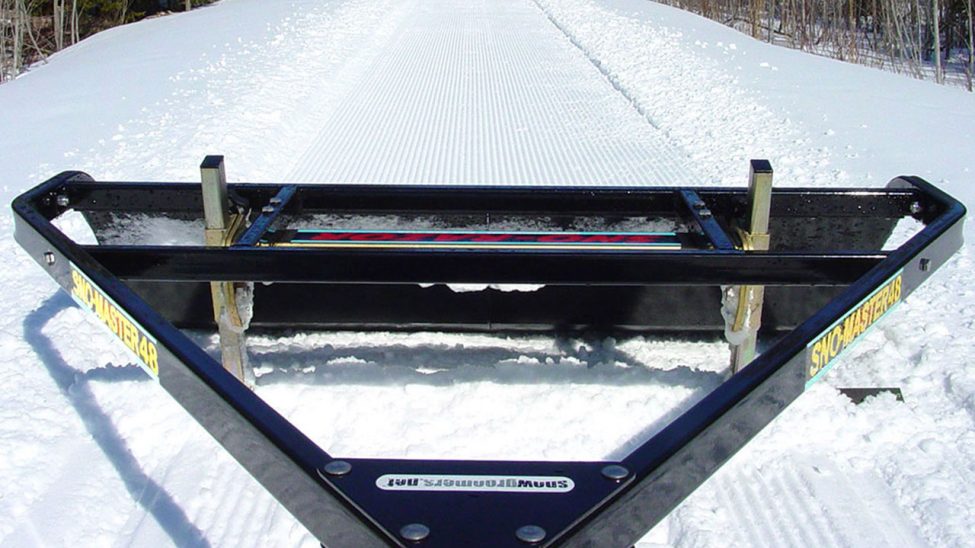

The SNO-MASTER 48 with SNO-RAZOR smooths a 48″ wide path. Adding the 12″wings cam make it up to a 70″ wide path. Wings keep deep snow from falling into what you have just groomed. A Razor cuts drifts, moguls, whoops and helps smooth them.

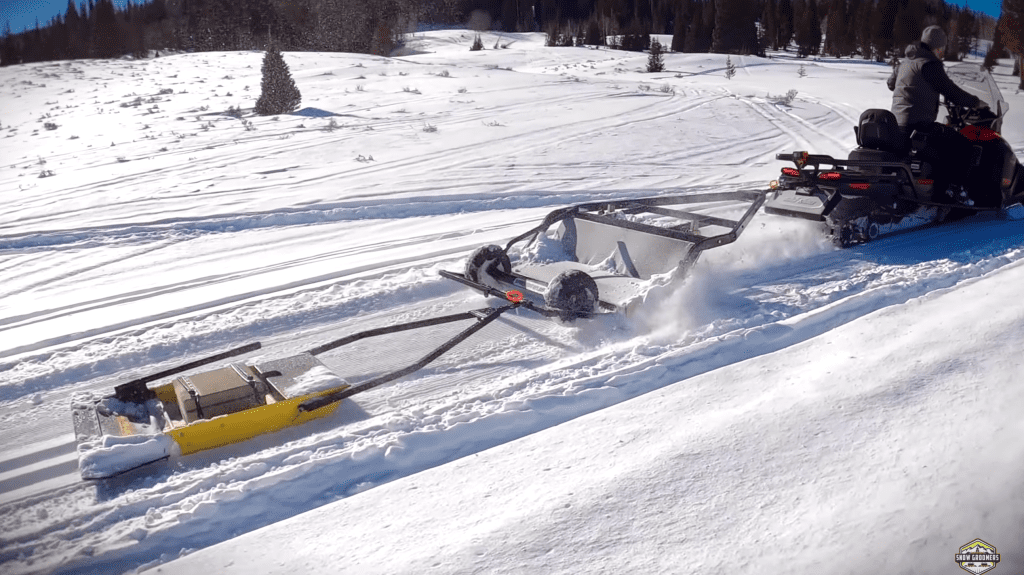

We love pulling this with our snowmobiles our our side by sides with tracks.

360 Degree View

Click and drag the image for a 360 degree view of the SNO-MASTER 48 with SNO-RAZOR.

SNO-MASTER® 48

SNO-MASTER® 48

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter

SNO-MASTER 48

#SM-4006P

$2,950 USD

-$50 Instant Bundle Savings

$2,900 USD

Buy Now

SNO-MASTER® 48 WING

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) 12″ Wing Set

SNO-MASTER 48 WING

#SM-4126P

$3,150 USD

-$50 Instant Bundle Savings

$3,100 USD

Buy Now

*Shown with optional SNO-RAZOR

SNO-MASTER® 48 WHEEL

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) SNO-MASTER 48 Wheel Kit
- (1) Wheel Kit Assembly
- (2) Wheel Kit Brackets
- (1) 18″ Wheel Kit Lifting Handle
- (2) 10″ Run Flat Wheel

SNO-MASTER 48 WHEEL

#SM-4006P-WK

$3,850 USD

-$150 Instant Bundle Savings

$3,700 USD

Buy Now

*Shown with optional SNO-RAZOR

SNO-MASTER® 48 WING WHEEL

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) 12″ Wing Set
(1) SNO-MASTER 48 Wheel Kit
- (1) Wheel Kit Assembly
- (2) Wheel Kit Brackets
- (1) 18″ Wheel Kit Lifting Handle
- (2) 10″ Run Flat Wheel

SNO-MASTER 48 WING WHEEL

#SM-4126P-WK

$4,050 USD

-$150 Instant Bundle Savings

$3,900 USD

Buy Now

*Shown with optional 12″ Wing Set

SNO-MASTER® 48 RAZOR

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) 48 SNO-RAZOR
(1) SNO-MASTER 48 Sub-Frame
(2) SNO-MASTER 24″ Deflector Panel

SNO-MASTER 48 RAZOR

#SM-4006P-RZ

$4,750 USD

-$150 Instant Bundle Savings

$4,600 USD

Buy Now

SNO-MASTER® 48 WING RAZOR

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) 12″ Wing Set
(1) 48 SNO-RAZOR
(1) SNO-MASTER 48 Sub-Frame
(2) SNO-MASTER 24″ Deflector Panel

SNO-MASTER 48 WING RAZOR

#SM-4126P-RZ

$4,950 USD

-$200 Instant Bundle Savings

$4,750 USD

Buy Now

SNO-MASTER® 48 WHEEL RAZOR

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) SNO-MASTER 48 Wheel Kit
- (1) Wheel Kit Assembly
- (2) Wheel Kit Brackets
- (1) 18″ Wheel Kit Lifting Handle
- (2) 10″ Run Flat Wheel
(1) 48 SNO-RAZOR
(1) SNO-MASTER 48 Sub-Frame
(2) SNO-MASTER 24″ Deflector Panel

SNO-MASTER 48 WHEEL RAZOR

#SM-4006P-WK-RZ

$5,650 USD

-$250 Instant Bundle Savings

$5,400 USD

Buy Now

SNO-MASTER® 48 WING WHEEL RAZOR

Includes

(1) 48″ Steel Grooming Chassis
- (1) 24″ Urethane Grooming Comb-Set of 2
- (1) SM48 Weight/Bow Cover Set
(1) SNO-MASTER 48 Drawbar Set
(1) SNO-MASTER Tracking Runner Set
(1) SNO-MASTER Pan Link Adjustment Set
(1) 48″ Hitch Plate Assembly
(1) 6″ Pin Coupler w/ Detent Pin
(1) 2″ Ball Adapter
(1) 12″ Wing Set
(1) SNO-MASTER 48 Wheel Kit
- (1) Wheel Kit Assembly
- (2) Wheel Kit Brackets
- (1) 18″ Wheel Kit Lifting Handle
- (2) 10″ Run Flat Wheel
(1) 48 SNO-RAZOR
(1) SNO-MASTER 48 Sub-Frame
(2) SNO-MASTER 24″ Deflector Panel

SNO-MASTER 48 WING WHEEL RAZOR

#SM-4126P-WK-RZ

$5,850 USD

-$250 Instant Bundle Savings

$5,600 USD

Buy Now

Wide Trail Groomer Specifications

	SNO-MASTER 48	SNO-MASTER 72
Grooming Width:
- without Wings	48" (1219 mm)	72" (1829 mm)
- with 12" Berm Wings	56" - 60" (1422 mm - 1524 mm)	80" - 84" (2032 mm - 2133 mm)
- with 12" Standard Wings	60" - 72" (1524 mm - 1829 mm)	84" - 96" (2133 mm - 2438 mm)
Length - Overall	68" (1727 mm)	79" (2007 mm)
Height - Overall	16" (406 mm)	16" (406 mm)
SNO-RAZOR Width	48" (1219 mm)	72" (1828 mm)
SNO-RAZOR Height Adjustment	Infinitely Adjustable	Infinitely Adjustable
SNO-RAZOR Angle Adjustment	15 - 30 degrees	15 - 30 degrees
Weight - empty w/12" Wings	102 lbs (46.4 kg)	168 lbs (76.4 kg)
Weight with SNO-RAZOR	155 lbs (70.4 kg)	234 lbs (106.4 kg)
Block Capacity (2" concrete blocks)	99 lbs (45 kg) 6	132 lbs (60 kg) 8
Total Maximum Weight	254 lbs (115.4 kg)	366 lbs (166.4 kg)
Chassis/Drawbar Material	Steel	Steel
SNO-RAZOR Material	Steel	Steel
Hardware	Stainless Steel	Stainless Steel
Recommended Towing Machines:
- Snowmobile	15" wide, long-track (136"+)	20" wide, long-track (154"+)
- ATV/UTV	Track Equipped	Track Equipped

Specifications subject to change without notice.

SNO-MASTER 48 Replacement Parts and Accessories

		Part #	Price
Wings
	6" Wing Set (1-6" RH Wing + 1-6" LH Wing)	200-5010	$200 USD Sale: $100 USD
	8″ Wing Set	200-5020	$200 USD Sale: $100 USD
	12" Wing Set (1-12" RH Wing + 1-12" LH Wing)	300-1012	$200 USD
COUPLERS & HITCHES
	ATV Universal Hitch 3/4″	300-1004	$80 USD
	UTV Universal Hitch 1″	300-1005	$80 USD
	SNO-MASTER Rear Hitch	300-1006	$100 USD
	SLED Universal Hitch	300-1015	$160 USD
	2″ Ball Adapter	300-1075	$20 USD
	6″ Standard Pin Coupler w/ Detent Pin	300-1060	$60 USD
	6″ Ring Coupler	300-1061	$50 USD
	6″ Standard Pin Coupler – 3″ Offset w/ Detent Pin	300-1062	$100 USD
	6″ Ring Coupler – 3″ Offset	300-1063	$90 USD
	6″ Standard Pin Coupler – 5″ Offset w/ Detent Pin	300-1064	$110 USD
	6″ Ring Coupler w/ 5″ Offset	300-1065	$100 USD
	Shear Pin Upgrade Kit	300-1080	$10 USD
	3/16″ Shear Pin w/ Wire Lock (Set of 2)	300-1014	$10 USD
PLASTICS-COMBS
	24″ Urethane Comb (SM48 Set of 2)	300-5004-4	$400 USD
	SM48 Weight/Bow Cover Set (1 Left, 1 Right)	300-5005	$50 USD
	48″ Deflector PC/ABS Panels (Set of 2-24″)	300-6008	$100 USD
DRAWBARS - SUB-FRAMES - HITCH PLATES
	SM48 Drawbars (LH and RH)	300-4801	$750 USD
	SM48 Hitch Plate Assembly	300-4802	$90 USD
	SM48 Sub-Frame	300-6005	$400 USD
HARDWARE
	.125 Hitch Pin Set (Set of 2)	300-1001	$5 USD
	3/8" Orange Handle Detent Pin	300-1003	$15 USD
	SNO-MASTER Tracking Runner Set (Set of 2 Stainless Steel)	300-5001	$50 USD
	SNO-MASTER Pan Link Adjustment w/Spacer (Set of 2)	300-5002	$50 USD
	Thumb Screws (Set of 3 10-32)	300-5003-1	$8 USD
	Thumb Screws (Set of 3 1/4-20)	300-5003-2	$10 USD
TOW BARS
	Tow Bar Short Tube	300-5011	$50 USD
	48 Tow Bar Tube	300-5012	$120 USD
	Tow Bar Bracket	300-5014	$100 USD
	Tow Bar Hitch	300-5015	$60 USD
WHEEL KIT
	SNO-MASTER 48″ Wheel Kit	300-4803	$900 USD
	18″ Lifting Handle w/ Rubber Grip	300-4804	$50 USD
	Wheel Kit Mounting Bracket (Set of 2)	300-5008	$40 USD
	10″ Tubed Wheel	300-5009	$40 USD
	Wheel Kit Locking Pin	300-5010	$20 USD
SNO-RAZOR
	48″ Cutter Assembly	300-6002	$550 USD
	48″ SNO-RAZOR	100-3020	$1,800 USD
	SNO-RAZOR 36/48 Cross Tube	300-6010	$150 USD
	SNO-RAZOR 36/48 Pivot Plate (Right)	300-6012	$90 USD
	SNO-RAZOR 36/48 Pivot Plate (Left)	300-6013	$90 USD
	SNO-RAZOR 36/48 Shear Bolts/Nuts (Set of 2)	300-6014	$5 USD
	SNO-RAZOR 36/48 Leg	300-6018	$60 USD
	SNO-RAZOR Fluted Handle Locking Screw	300-6020	$10 USD
	Magnetic Base Angle Indicator	300-6021	$10 USD
