Showing 65–80 of 124 results
This comes with a 5″ (12.7 cm) offset allows your towbars to be more level. Level drawbars give you the correct angle and drop for your SNO-RAZOR blade to work effectively.
Recommended for snowmobiles.
Measurement: Approximately 10″ H x 32″ L each shovel
Material: 12 GA Stainless Steel (Shear), 10 GA Standard Steel Plate

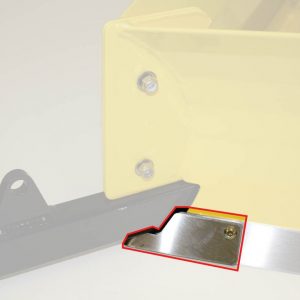

Finish: Stainless Steel (Plow Shear and Nose Guard), Safety Yellow Powder Coat Paint
Includes: (2) Plow Blade, (2) Plow Shear, (18) 1/4-20 x 3/4″ Star Drive Pan Head Screws, (10) 1/4-20 x 2-1/4″ Stainless Steel Carriage Bolts, (12) 1/4-20 Stainless Steel Nylock Nuts, (2) 1/4″ Stainless Steel Washers

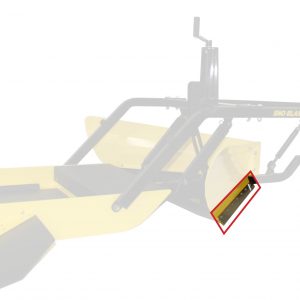

As part of the SNO BLASTER plow shovels, the plow shears are the wearable part that after significant use will commonly need replacement.
Replacement on SNO BLASTER plow shovels only.
Measurement: Approximately 23-1/2″ x 1-1/2″
Material: 12 GA Stainless Steel
Finish: #4 Stainless Surface on leading side
Includes Hardware: (14) 1/4-20 x 3/4″ Star Drive Pan Head Screws
SNO-MASTER Rear Hitch attaches quickly to the rear of the SNO-MASTER 48 and 72 Chassis using the included 4 – 1/4-20 x 7/8″ Stainless Steel Hex Bolts and 4 – 1/4-20 Stainless Steel Nylock Nuts. Each SNO-MASTER chassis includes the pre-drilled holes (some located behind the sticker) to attach the Rear Hitch on the left, right, or center of the groomed trail. The Stainless Steel Pin enables the 180 degree vertical movement needed to attach the Pin Coupler of the TRAKOR.
Ring coupler used to connect towing machine to snow groomer. The ring coupler allows for variable movement when linked to a Pintle Hook hitch. Includes a 5″ x 3/4″ rectangle tube offset to raise or lower the connection point.
Measurement: Approximately 6-1/2″ x 2″
Material: 12 GA Stainless Steel
Finish: #4 Stainless Surface on leading side
Upgrade your current Snow Groomers Hitch Plate and Coupler (Pin or Ring) with a 750 ft-lb. break rating. With the included 13/64″ drill bit, drill through the existing shear pin holes in both the coupler and hitch plate receiver then insert the new 3/16″ Zinc Yellow-Chromate plated Wire-Lock Shear Pin.
Measurement: 6-1/2″ x 8-1/4″
Material: 12 GA Carbon Steel Plate
Finish: Bengal Black Powder Coat Paint
Includes: (1) Upper Hitch Plate w/ Receiver, (1) Lower Hitch Plate, (4) 5/16-18 x 3″ Stainless Steel Carriage Bolts, (4) 5/16-18 Stainless Steel Nylock Nuts, (1) Anti-Seize Packet
Measurement: Approximately 1-1/2″ x 14-1/2″ x 49″
Material: 1″ x 1-1/2″ 11 GA Rectangle Tubing, 7 GA Standard Steel plate
Finish: Bengal Black Powder Coat paint
Includes: (1) SM48 Sub-Frame, (4) 3/8-16 x 1-3/4″ Stainless Steel Hex Bolt, (4) 3/8-16 Stainless Steel Nylock Nuts
Measurement: Approximately 24″ x 13-1/2″
Material: .125 ABS
Finish: Black ABS, Haircell outward side, smooth inward side
Includes: (2) 24″ Weight and Bow Covers, (14) #68 Pop Rivets
Measurement: Approximately 1″ x 2″ x 82″
Material: 11 GA Standard Steel Rectangle Tube
Finish: Bengal Black Powder Coat paint
Includes: (1) Left Hand SM72 Drawbar, (1) Right Hand SM72 Drawbar, (2) .125″ x 1-15/16″ Stainless Steel Hitch Pins, (2) 1/2″ Zinc plated Washer
