TRAKOR® STANDARD

The TRAKOR Standard was developed to make beautifully groomed classic trails for small ski clubs, local parks and recreation departments, golf courses and people with trails right out their backdoor. It makes an ideal first groomer, but this expandable platform offers many potential options for the future.

Specifications  Price List  Shipping Calculator

Primarily used in fresh snow and soft snow, the TRAKOR Standard is also used behind SNO-RAZOR equipped SNO-MASTERS, making perfect tracks in all snow conditions.

The 44” welded drawbar features a breakaway coupler, which protects the operator and groomer from hidden obstacles. Locally purchased, solid cement blocks weight the sled for maximum compaction.

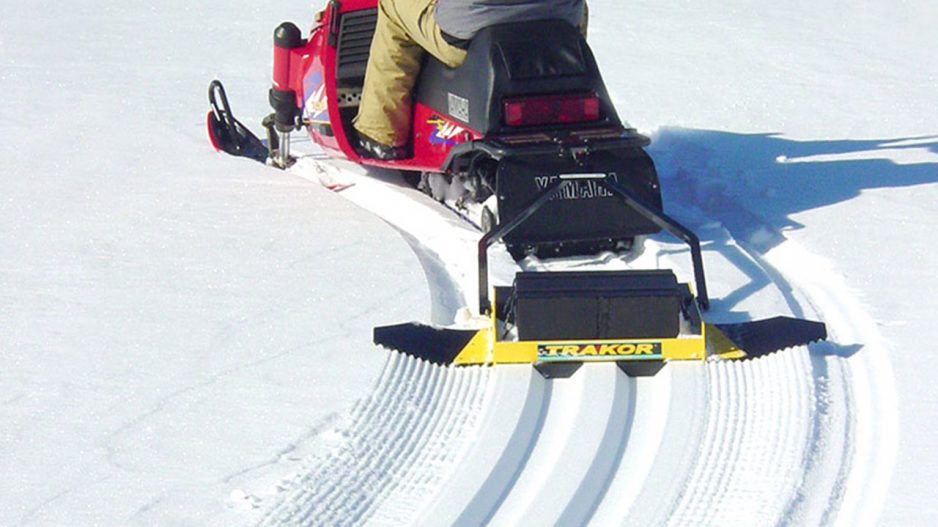

Optional 12” Wings are normally fitted to compact the poling area on both sides of the tracks, they provide a stable poling corduroy and bend up if they encounter a tree or post.

The optional DeTRAKOR bolts on the back of any TRAKOR to remove tracks on steep hills and sharp corners.

TRAKOR Specifications

 TRAKOR STANDARDTRAKOR LOPPET 60TRAKOR BEST LINE 76
Grooming Width:
- without Wings20" (508 mm)20" (508 mm)20" (508 mm)
- with 12" Standard Wings40" - 44" (1016 mm - 1118 mm)40" - 44" (1016 mm - 1118 mm)40" - 44" (1016 mm - 1118 mm)
Drawbar Length44" (1118 mm)60" (1524 mm)76" (1930 mm)
Length - Overall63" (1600 mm)79" (2006 mm)95" (2413 mm)
Height - Overall8" (203 mm)15" (381 mm)15" (381 mm)
Weight with 12" Wings:
- without Blocks63 lbs (29 kg)76 lbs (34 kg)80 lbs (36 kg)
- with 2 - 4" Blocks (72 lbs)*135 lbs (62 kg)148 lbs (67 kg)152 lbs (69 kg)
- with 2 - 6" Blocks (110 lbs)*173 lbs (79 kg)186 lbs (84 kg)190 lbs (86 kg)
Chassis/Drawbar MaterialSteelSteelSteel
HardwareStainless SteelStainless SteelStainless Steel
Recommended Towing Machines:
- Snowmobile15" wide, long-track (136"+)15" wide, long-track (136"+)15" wide, long-track (136"+)
- ATV/UTVTrack EquippedTrack EquippedTrack Equipped
*Solid Concrete Blocks 8" x 16"

Specifications subject to change without notice.

TRAKOR Price List

TRAKOR®
TRAKOR® STANDARD20" Track Setter with 44" drawbar, (also used behind SNO-MASTERS)$749.95
TRAKOR® LOPPET 6020" Track Setter with Heavy-Duty 60" Drawbar, accepts 36" SNO-RAZOR$949.95
TRAKOR® BEST-LINE 7620" Track Setter with Heavy-Duty 76" Drawbar, accepts 36" SNO-RAZOR$1049.95
12" WING SETFlexible Urethane, Compacts Poling Area for 44" groomed width$129.95
SNO-RAZOR for LP60/BL7636" SNO-RAZOR and Snow Deflector$899.95
DeTRAKORRemoves Tracks (fits all Trakors)$499.95

All prices in U.S. Dollars. Prices subject to change without notice. Michigan Residents add 6% Sales Tax.

Please specify:

Coupler Type

Standard Snowmobile Pin-Type

Ring-Type for Pintle Hook
