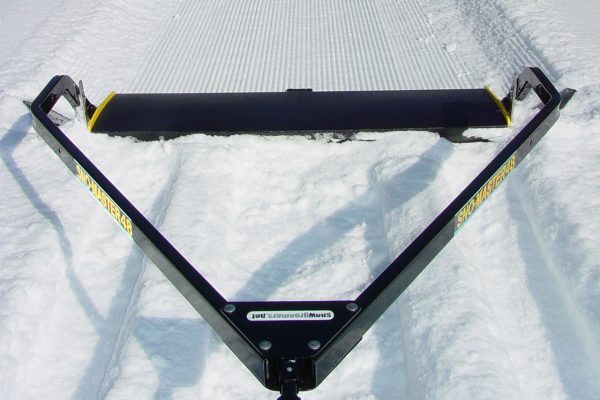

SNO-MASTER® 48

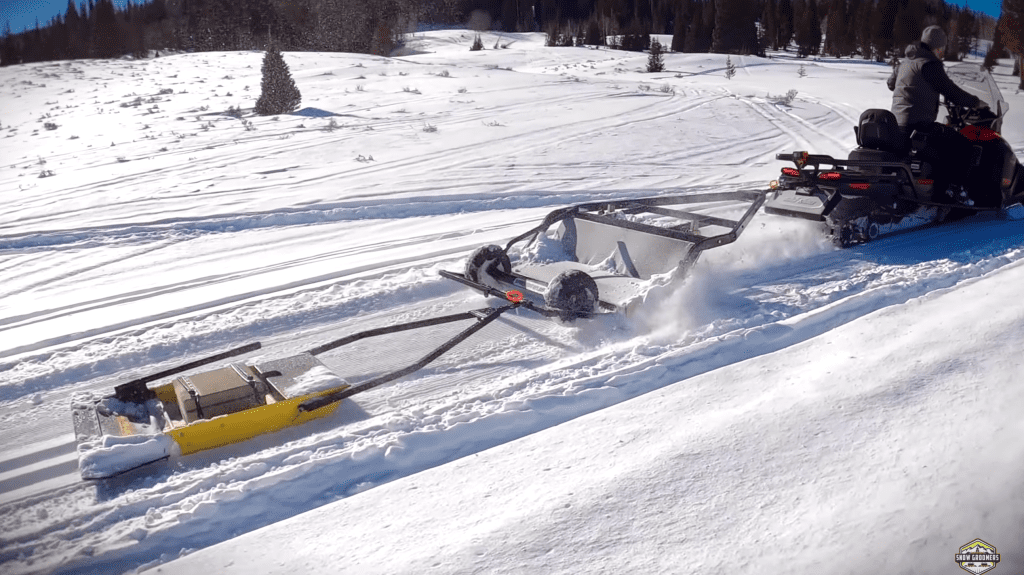

The SNO-MASTER 48 is the #1 selling lightweight groomer because of its versatility, cost, and ease of use (SCROLL DOWN TO SEE PRICE). Commonly used for snowmobile, dog sled, cabin access, ski-in/ski-out, sledding, skiing, tubing plus a variety of other trails. If you have snow that you want to level and compact, the SNO-MASTER 48 will do it more efficiently than any other groomer. The most efficient way to groom in lots of snow conditions is with an SNO-RAZOR and 12″ wings attached.  The SNO-RAZOR cuts and levels out drifts and whoops.  The wings help keep the deep snow from falling into the groomed path.  Adding a Wheel kit allows you to move it around easily.

Need Help? Complete the Request Quote Form to help design the perfect combination.

From powder to slush and every type of snow in between, this rugged little groomer does it all. It’s easier to pull and operates at higher speeds, which means a smaller towing machine and more time to enjoy your winter activities. The 48″ groomer is good for cross country skiing, dog sled, cabin access, ski-in/ski-out, sledding, tubing, snowmobile, etc. Best selling snow groomer because it does so much.

Wings

If you just want to compact your trails, the basic SNO-MASTER 48 is all you need. A Standard 12” Wing Set is included, or substitute 12” Berm Wings to form tubing lanes. The break-away coupler set includes a flat coupler to set compaction angle, plus 3” & 5” offset couplers to increase compaction angle for fresh snow.

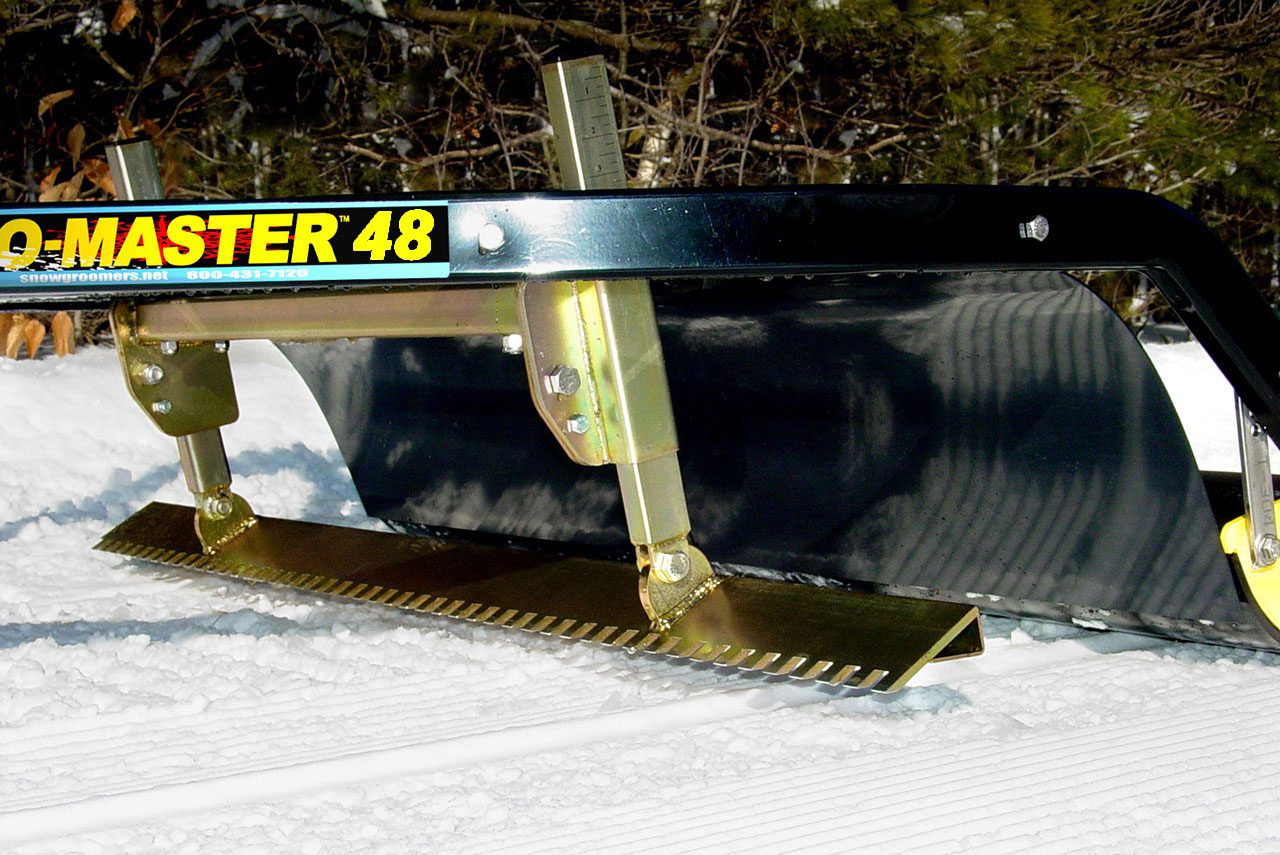

Want to level your trails and leave a perfect corduroy in all snow conditions? The optional SNO-RAZOR with subframe and snow deflectors attaches with just 8 bolts and is included with 9 out of every 10 SM48’s we sell.

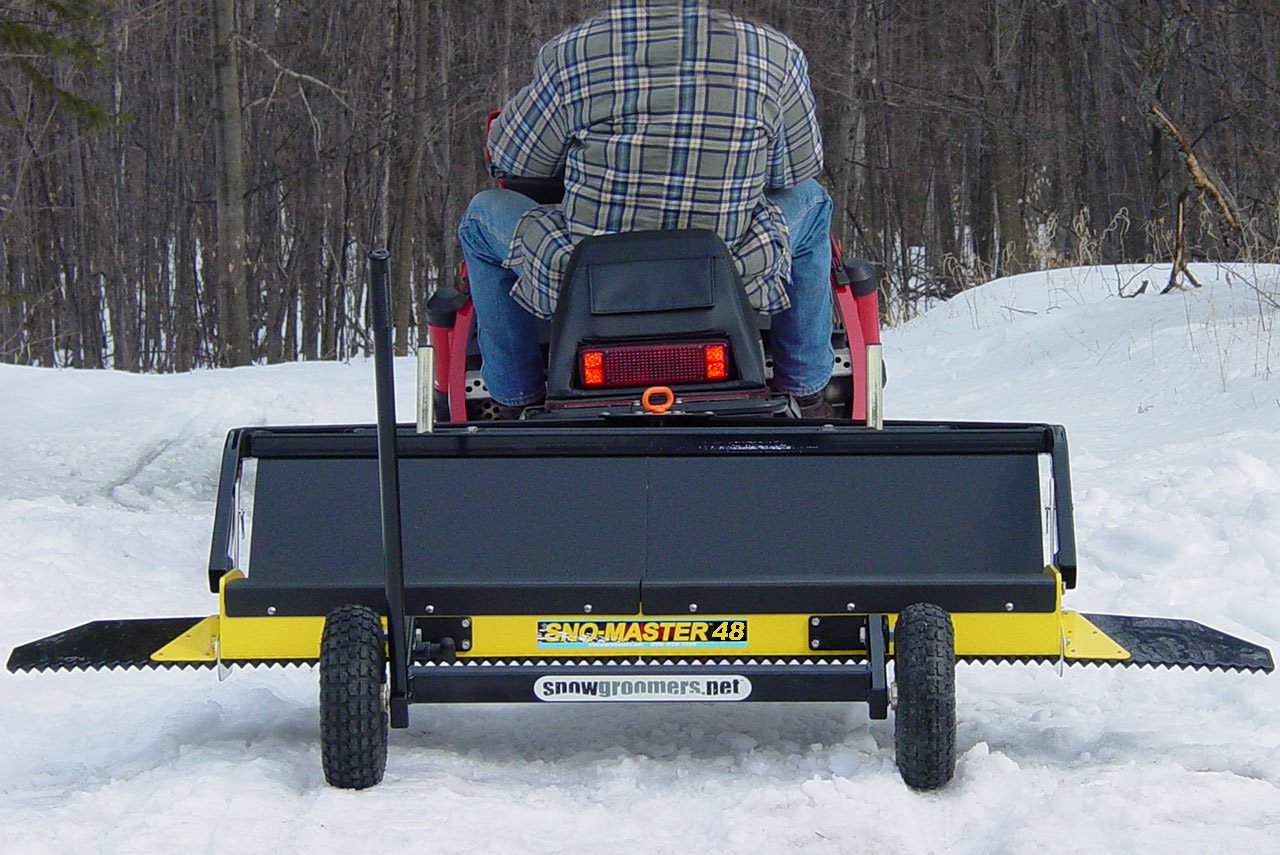

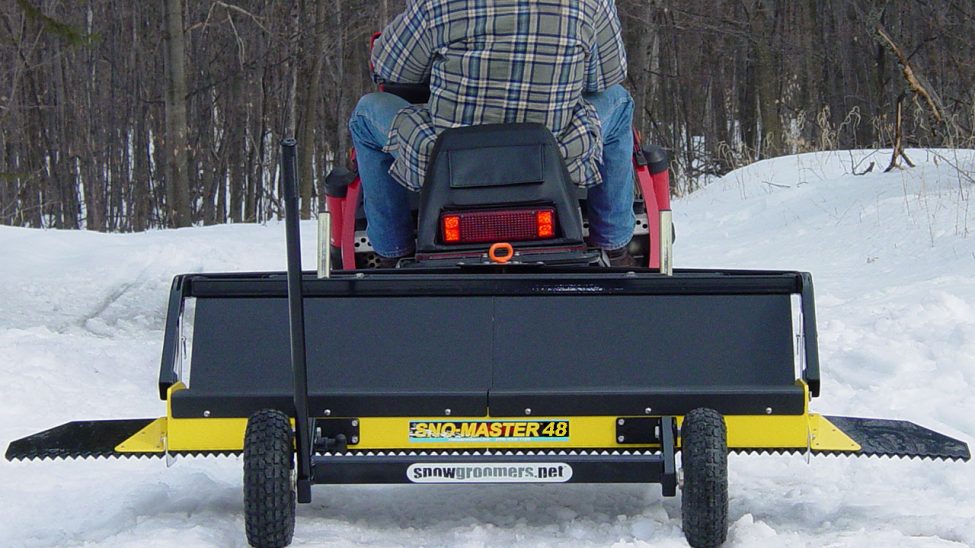

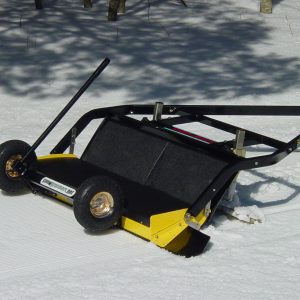

Do you have road crossings or the need to move in and out of a maintenance building, simply bolt on the optional SM48 Wheel Kit.

Best Selling Snow groomer.

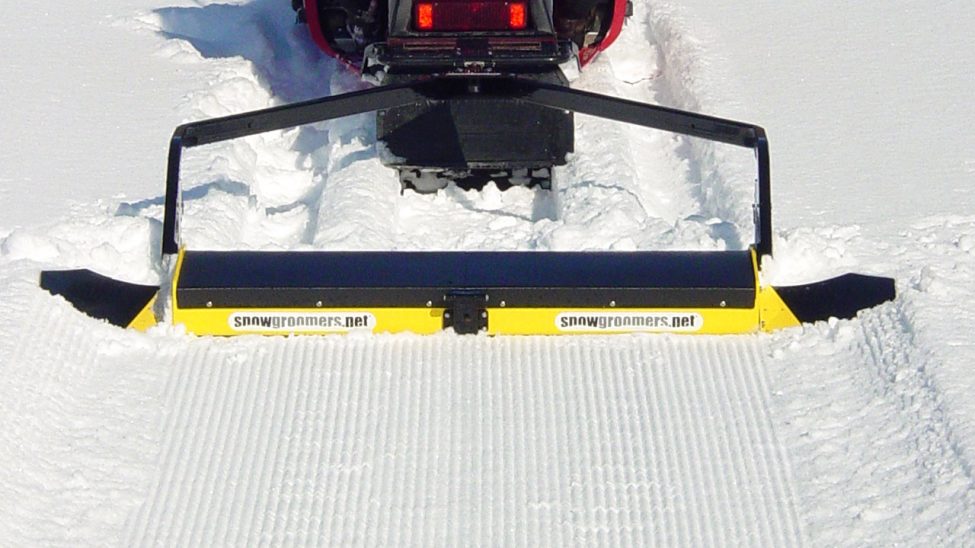

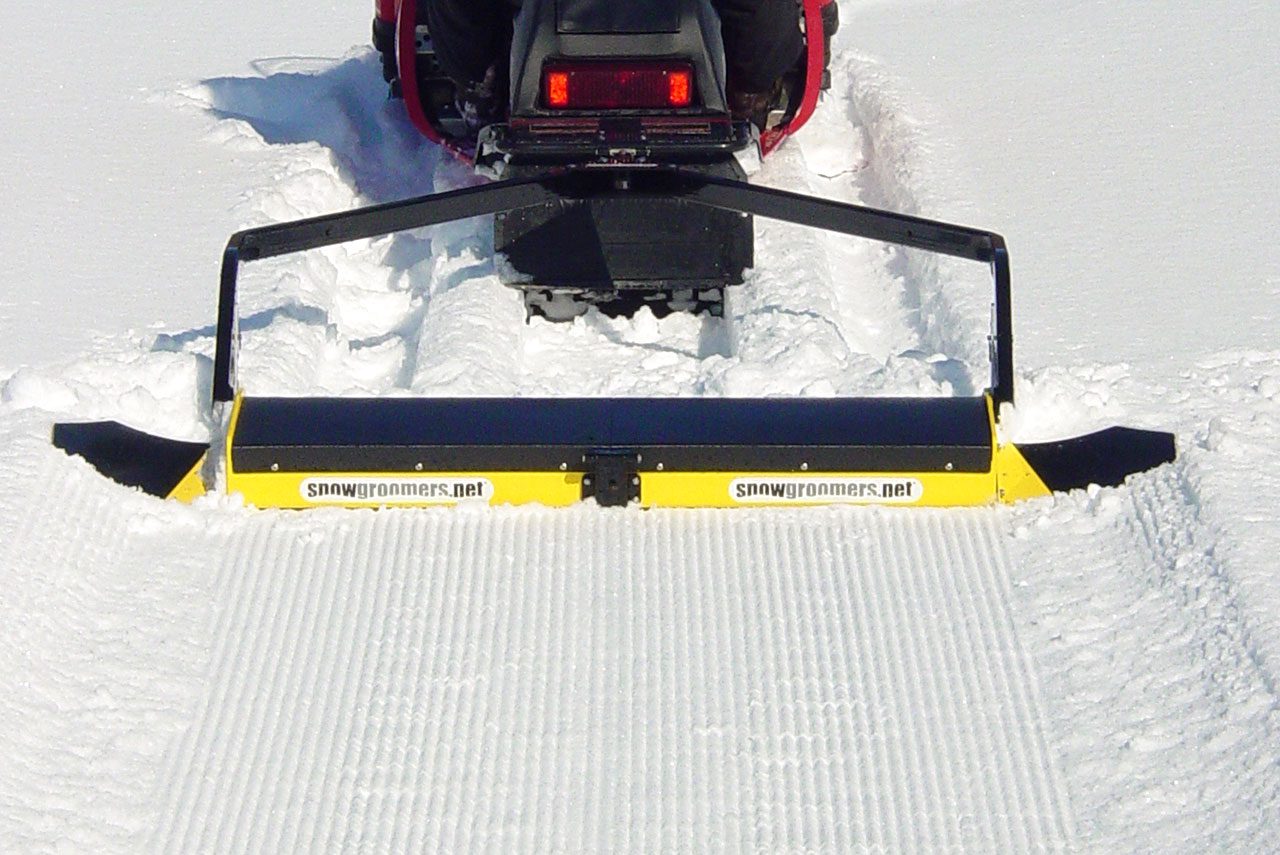

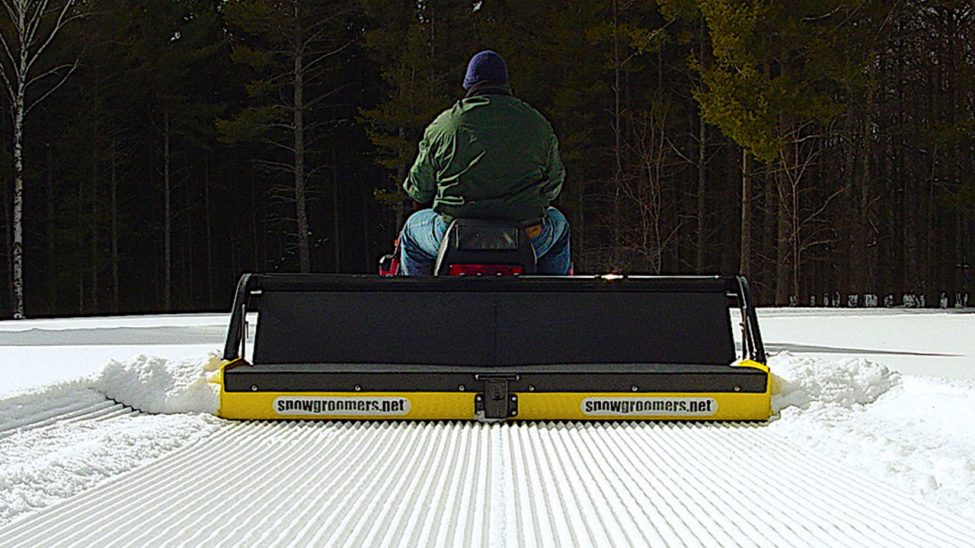

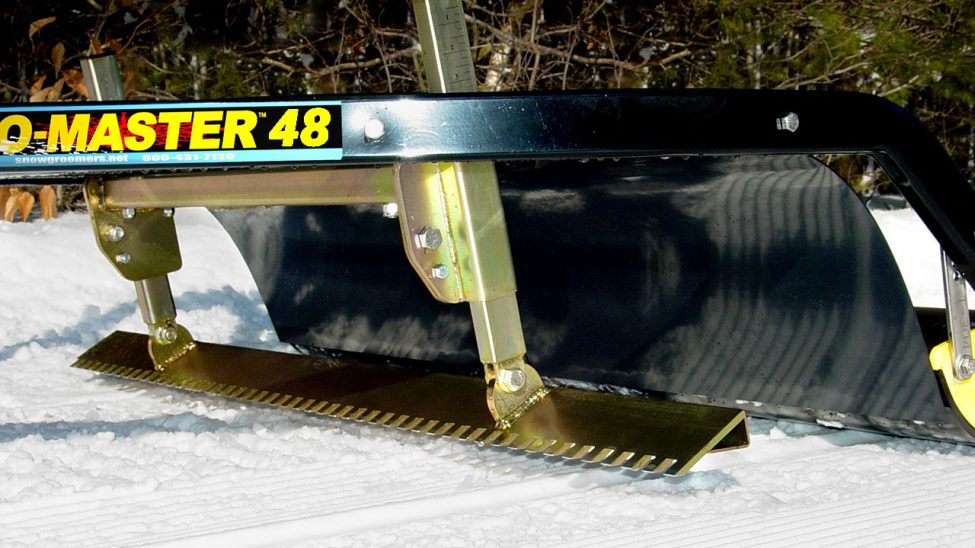

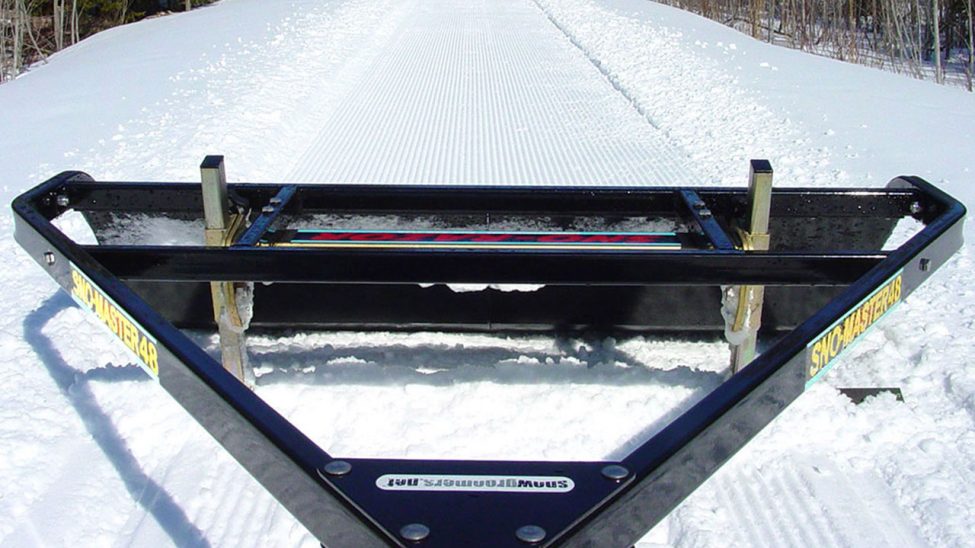

The SNO-MASTER 48 with SNO-RAZOR smooths a 48″ wide path. Adding the 12″wings cam make it up to a 70″ wide path.  Wings keep deep snow from falling into what you have just groomed. A Razor cuts drifts, moguls, whoops and helps smooth them.

0%

    360 Degree View

    Click and drag the image for a 360 degree view of the SNO-MASTER 48 with SNO-RAZOR.

    SNO-MASTER® 48

    SNO-MASTER 48 Standard Pkg

    #SM-4006P

    w/ 6in STD PIN Coupler

    $2,799.95

    SNO-MASTER 48 Standard Pkg

    #SM-4006R

    w/ 6in RING Coupler

    $2,799.95

    SNO-MASTER 48 Wing Pkg

    #SM-4126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    $2,929.95

    SNO-MASTER 48 Wing Pkg

    #SM-4126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    $2,929.95

    SNO-MASTER 48 RAZOR Pkg

    #SR-4126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    w/ 48in SNO-RAZOR & Deflector





    $4,429.95

    SNO-MASTER 48 RAZOR Pkg

    #SR-4126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    w/ 48in SNO-RAZOR & Deflector





    $4,429.95

    SNO-MASTER 48 RAZOR / Wheel Kit Pkg

    #SW-4126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    w/ 48in SNO-RAZOR & Deflector

    w/ 48 Wheel Kit



    $5,099.95

    SNO-MASTER 48 RAZOR / Wheel Kit Pkg

    #SW-4126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    w/ 48in SNO-RAZOR & Deflector

    w/ 48 Wheel Kit



    $5,099.95

    Wide Trail Groomer Specifications

     SNO-MASTER 48SNO-MASTER 72
    Grooming Width:
    - without Wings 48" (1219 mm)72" (1829 mm)
    - with 12" Berm Wings56" - 60" (1422 mm - 1524 mm)80" - 84" (2032 mm - 2133 mm)
    - with 12" Standard Wings60" - 72" (1524 mm - 1829 mm)84" - 96" (2133 mm - 2438 mm)
    Length - Overall 68" (1727 mm) 79" (2007 mm)
    Height - Overall16" (406 mm)16" (406 mm)
    SNO-RAZOR Width 48" (1219 mm) 72" (1828 mm)
    SNO-RAZOR Height AdjustmentInfinitely AdjustableInfinitely Adjustable
    SNO-RAZOR Angle Adjustment15 - 30 degrees15 - 30 degrees
    Weight - empty w/12" Wings102 lbs (46.4 kg)168 lbs (76.4 kg)
    Weight with SNO-RAZOR155 lbs (70.4 kg)234 lbs (106.4 kg)
    Block Capacity (2" concrete blocks)99 lbs (45 kg) 6132 lbs (60 kg) 8
    Total Maximum Weight254 lbs (115.4 kg)366 lbs (166.4 kg)
    Chassis/Drawbar MaterialSteelSteel
    SNO-RAZOR MaterialSteelSteel
    HardwareStainless SteelStainless Steel
    Recommended Towing Machines:
    - Snowmobile15" wide, long-track (136"+)20" wide, long-track (154"+)
    - ATV/UTVTrack EquippedTrack Equipped

    Specifications subject to change without notice.

    SNO-MASTER 48 Replacement Parts and Accessories

      Part #Price
    Wings
    6" Wing Set (1-6" RH Wing + 1-6" LH Wing)200-5010$149.99
    Sale: $99
    8" Wing Set (1-8" RH Wing + 1-8" LH Wing)200-5020$179.99
    Sale: $109
    12" Berm Wing Set (1-12" RH Wing + 1-12" LH Wing)200-5040$199.99
    Sale: $119
    12" Wing Set (1-12" RH Wing + 1-12" LH Wing)300-1012$199.99
    COUPLERS & HITCHES
    ATV Universal Hitch 3/4″300-1004$79.99
    UTV Universal Hitch 1″300-1005$89.99
    SNO-MASTER Rear Hitch300-1006$99.99
    Snow Groomer hitch couplers6″ Standard Pin Coupler w/ Detent Pin300-1060$59.99
    Ring type Pintle Hook6″ Ring Coupler300-1061$49.99
    6″ Standard Pin Coupler – 3″ Offset w/ Detent Pin300-1062$89.99
    6″ Ring Coupler – 3″ Offset300-1063$79.99
    6″ Standard Pin Coupler – 5″ Offset w/ Detent Pin300-1064$109.99
    6″ Ring Coupler w/ 5″ Offset300-1065$99.99
    PLASTICS-COMBS
    24″ Urethane Comb (SM48 Set of 2)300-5004-4$279.99
    SM48 Weight/Bow Cover Set (1 Left, 1 Right)300-5005$49.99
    48″ Deflector PC/ABS Panels (Set of 2-24″)300-6008$99.99
    DRAWBARS - SUB-FRAMES - HITCH PLATES
    SM48 Drawbars (LH and RH)300-4801$579.99
    SM48 Hitch Plate Assembly300-4802$89.99
    SM48 Sub-Frame300-6005$399.99
    HARDWARE
    .125 Hitch Pin Set (Set of 2)300-1001$3.99
    3/8" Orange Handle Detent Pin300-1003$14.99
    SNO-MASTER Tracking Runner Set (Set of 2 Stainless Steel)300-5001$54.99
    SNO-MASTER Pan Link Adjustment w/Spacer (Set of 2)300-5002$49.99
    Thumb Screws (Set of 3 10-32)300-5003-1$4.99
    Thumb Screws (Set of 3 1/4-20)300-5003-2$7.99
    TOW BARS
    Tow Bar Short Tube300-5011$49.99
    48 Tow Bar Tube300-5012$119.99
    Tow Bar Bracket300-5014$99.99
    Tow Bar Hitch300-5015$99.99
    WHEEL KIT
    SNO-MASTER 48″ Wheel Kit300-4803$699.99
    18″ Lifting Handle w/ Rubber Grip300-4804$64.99
    Wheel Kit Mounting Bracket (Set of 2)300-5008$39.99
    10″ Tubed Wheel300-5009$19.99
    Wheel Kit Locking Pin300-5010$19.99
    SNO-RAZOR
    48″ Cutter Assembly300-6002$779.99
    48″ SNO-RAZOR100-3020$1,500.00
    SNO-RAZOR 36/48 Cross Tube300-6010$139.99
    SNO-RAZOR 36/48 Pivot Plate (Right)300-6012$79.99
    SNO-RAZOR 36/48 Pivot Plate (Left)300-6013$79.99
    SNO-RAZOR 36/48 Shear Bolts/Nuts (Set of 2)300-6014$4.99
    SNO-RAZOR 36/48 Leg300-6018$79.99
    SNO-RAZOR Fluted Handle Locking Screw300-6020$19.99
    Magnetic Base Angle Indicator300-6021$9.99

    Specifications subject to change without notice.
