NORDIC SM 48®

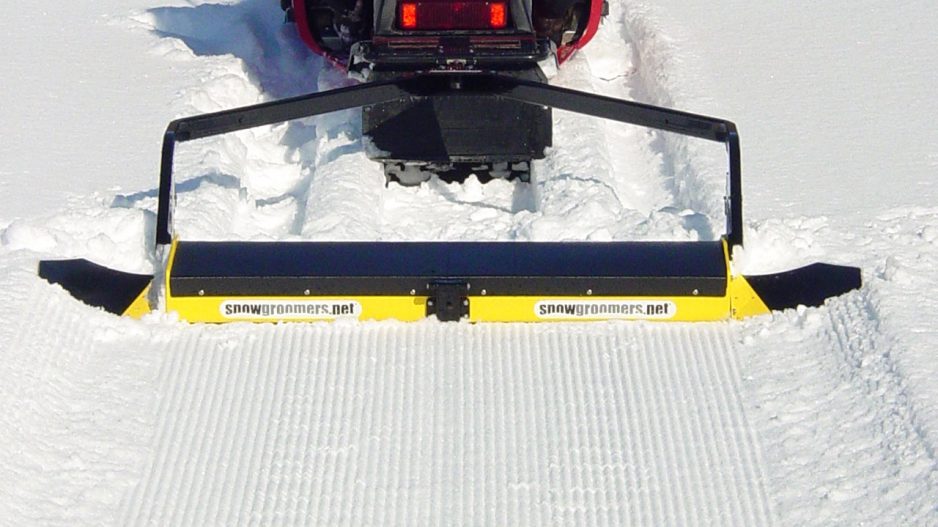

We developed the SNO-MASTER 48 in response to our TRAKOR customer’s requests. They wanted an easy-to-pull groomer to make freestyle/skating loops that worked as well as their TRAKOR did at setting classic tracks. The SNO-MASTER 48 (formerly the PRO-SKATE 4) has since become the #1 selling lightweight groomer because of its versatility, cost and most importantly, the beautiful trail it leaves.

Specifications  Price List  Shipping Calculator

From powder to slush and every type of snow in between, this rugged little groomer does it all. It’s easier to pull and operates at higher speeds, which means a smaller towing machine and more time skating.

Virtually all Nordic SM48’s we sell are fitted with the optional SNO-RAZOR to provide a perfect, seamless corduroy for freestyle technique. Protected by shear bolts, the SNO-RAZOR swings rearward if it encounters a stump or rock.

A 12” Wing Set is included, the wings extend the grooming width, “feather” the overlap of a previous/adjacent pass and radius the groomed snow into the ungroomed banks. These wings are made from an extremely durable urethane, they bend up when encountering a tree or post and snap back down for more.

The breakaway coupler set includes a flat coupler to set normal compaction angle, plus 3” & 5” offset couplers to increase the compaction angle in fresh snow (no roller needed!). The replaceable stainless steel tracking runners keep the SM48 running straight, even with a TRAKOR offset to one side.

If you have road crossings or the need to move in and out of a maintenance building, you may be interested in the optional SM48 Wheel Kit.

Towing a TRAKOR behind a Wheel Kit equipped SNO-MASTER 48 requires an optional Towbar. The standard, full-width model has three towing positions; the single sided Towbar can be mounted on either side

0%

    360 Degree View

    Click and drag the image for a 360 degree view of the SNO-MASTER 48 with SNO-RAZOR.

    NORDIC Groomer Specifications

     SNO-MASTER 48SNO-MASTER 72
    Grooming Width:
    - without Wings 48" (1219 mm)72" (1829 mm)
    - with 12" Berm Wings56" - 60" (1422 mm - 1524 mm)80" - 84" (2032 mm - 2133 mm)
    - with 12" Standard Wings60" - 72" (1524 mm - 1829 mm)84" - 96" (2133 mm - 2438 mm)
    Length - Overall 68" (1727 mm) 79" (2007 mm)
    Height - Overall16" (406 mm)16" (406 mm)
    SNO-RAZOR Width 48" (1219 mm) 72" (1828 mm)
    SNO-RAZOR Height AdjustmentInfinitely AdjustableInfinitely Adjustable
    SNO-RAZOR Angle Adjustment15 - 30 degrees15 - 30 degrees
    Weight - empty w/12" Wings102 lbs (46.4 kg)168 lbs (76.4 kg)
    Weight with SNO-RAZOR155 lbs (70.4 kg)234 lbs (106.4 kg)
    Block Capacity (2" concrete blocks)99 lbs (45 kg) 6132 lbs (60 kg) 8
    Total Maximum Weight254 lbs (115.4 kg)366 lbs (166.4 kg)
    Chassis/Drawbar MaterialSteelSteel
    SNO-RAZOR MaterialSteelSteel
    HardwareStainless SteelStainless Steel
    Recommended Towing Machines:
    - Snowmobile15" wide, long-track (136"+)20" wide, long-track (154"+)
    - ATV/UTVTrack EquippedTrack Equipped

    Specifications subject to change without notice.

    NORDIC Groomer Price List

    NORDIC TRAIL GROOMERS
    SNO-MASTER® 4848" Ultra Low-Resistance Groomer with 12" Wing Set and Coupler Set$1499.95
    SNO-RAZOR for SM4848" SNO-RAZOR, Subframe and Snow Deflectors$899.95
    Wheel Kit for SM48Complete Bolt-on Kit with 24" Handle$399.95
    Towbar for SM48Full Width, with 3 towing positions$199.95
    Single Side TowbarMounts on either side$149.95
    SNO-MASTER® 7272" Ultra Low-Resistance Groomer with Subframe and Snow Deflectors, 12" Wing Set and Coupler Set$1,899.95
    SNO-RAZOR for SM7272" SNO-RAZOR$1099.95
    Wheel Kit for SM72Complete Bolt-on Kit with 30" Handle$449.95
    Towbar for SM72Full Width, two towing positions, 44" centers$249.95
    Single Side TowbarMounts on either side$149.95

    All prices in U.S. Dollars. Prices subject to change without notice. Michigan Residents add 6% Sales Tax.

    Please specify:

    1. Coupler Type

    Standard Snowmobile Pin-Type

    Ring-Type for Pintle Hook

    2. Chassis Type

    1. Hitch Chassis, drilled for mounting SM Rear Hitch in center or offset right positions.
    2. Wheel Kit Chassis, drilled for mounting SM48 Wheel Kit
    3. Wheel Kit/Towbar Chassis, drilled for Wheel Kit and Towbars
