Ultra Low-resistance TRAKOR
Sled Bottom
- HDPE Sled Skin
- Stainless Steel Pre-cutters
- Cast Urethane Track Molds
- Full Length Tracking Runners
- 12” Wing Set
TRACKOR STANDARD - grooming xc ski path
TRAKOR®
The TRAKOR was developed to make beautifully groomed classic trails for small ski clubs, local parks and recreation departments, golf courses and people with trails right out their backdoor. It makes an ideal first groomer, but this expandable platform offers many potential options for the future.
Need Help? Complete the Request Quote form to help design the perfect combination.
Or, scroll down to see the pricing on the TRAKOR packages
Ultra Low-resistance TRAKOR
grooming xc ski trails
The economical TRAKOR Standard is primarily a fresh snow/soft snow groomer; its also towed behind SNO-RAZOR equipped SNO-MASTERS to form perfect tracks in all snow conditions.
grooming xc ski trails and smooth trails where hills are steep.
The TRAKOR Loppet 60 uses the same ultra low-resistance sled, but has a heavy-duty 60” long drawbar that sets straighter tracks and also accepts the optional 36” SNO-RAZOR. (shown with optional DeTRAKOR)

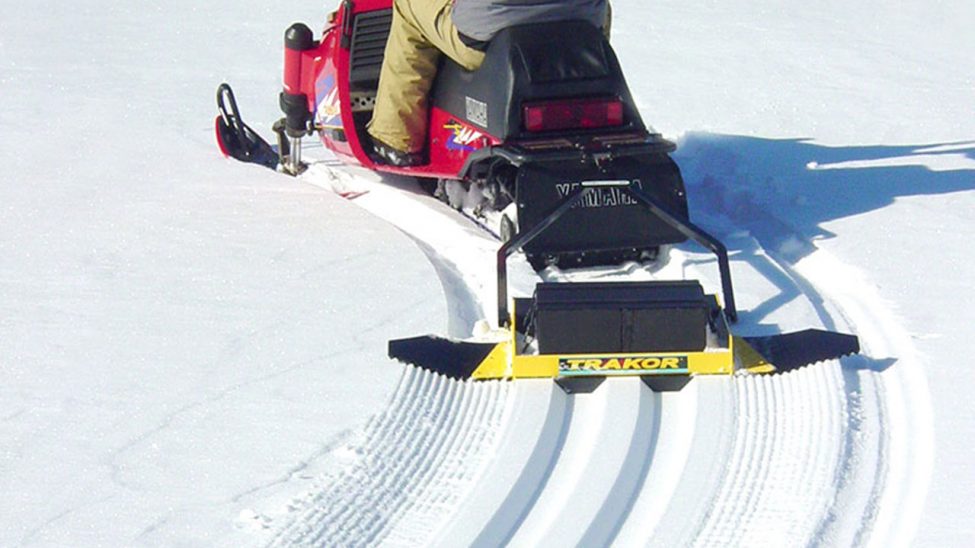

TRAKOR® w/ Standard Drawbar
*Shown with optional 12″ Wing Set
TRAKOR® STANDARD
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Standard 44 Drawbar
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
TRAKOR STANDARD
#TK-S006P
$1,400 USD
FREE Shipping to USA & Canada
TRAKOR® STANDARD WING
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Standard 44 Drawbar
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
TRAKOR STANDARD WING
#TK-S126P
$1,600 USD
FREE Shipping to USA & Canada
Includes the SM REAR HITCH to attach the TRAKOR STANDARD WING to the rear of the SNO-MASTER chassis to be pulled in tandem.
TRAKOR® STANDARD WING – SM REAR HITCH
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Standard 44 Drawbar
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) SNO-MASTER REAR HITCH
TRAKOR STANDARD WING – SM REAR HITCH
#TK-S126P-RH
$1,700 USD
-$50 Instant Bundled Savings
$1,650 USD
FREE Shipping to USA & Canada
TRAKOR® STANDARD WING – DeTRAKOR
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Standard 44 Drawbar
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) DeTRAKOR
TRAKOR STANDARD WING – DeTRAKOR
#TK-S126P-DT
$2,200 USD
-$50 Instant Bundled Savings
$2,150 USD
FREE Shipping to USA & Canada
Includes the SM REAR HITCH to attach the TRAKOR STANDARD WING-DeTRAKOR to the rear of the SNO-MASTER chassis to be pulled in tandem.
TRAKOR® STANDARD WING – SM REAR HITCH-DeTRAKOR
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Standard 44 Drawbar
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) SNO-MASTER REAR HITCH
- (1) DeTRAKOR
TRAKOR STANDARD WING
SM REAR HITCH-DeTRAKOR
#TK-S126P-RH-DT
$2,300 USD
-$50 Instant Bundled Savings
$2,250 USD
FREE Shipping to USA & Canada
TRAKOR® w/ LOPPET 60 Drawbar
*Shown with optional 12″ Wing Set
TRAKOR® LOPPET
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
TRAKOR LOPPET
#TK-L006P
$1,900 USD
TRAKOR® LOPPET WING
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
TRAKOR LOPPET WING
#TK-L126P
$2,100 USD
-$50 Instant Bundled Savings
$2,050 USD
*Shown with optional 12″ Wing Set and DeTRAKOR
TRAKOR® LOPPET RAZOR
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 36″ SNO-RAZOR
- (1) 36″ Deflector Bracket
- (1) 36″ Deflector Panel
TRAKOR LOPPET RAZOR
#TK-L006P-RZ
$3,300 USD
-$100 Instant Bundled Savings
$3,200 USD
*Shown with optional DeTRAKOR
TRAKOR® LOPPET RAZOR WING
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) 36″ SNO-RAZOR
- (1) 36″ Deflector Bracket
- (1) 36″ Deflector Panel
TRAKOR LOPPET RAZOR WING
#TK-L126P-RZ
$3,500 USD
-$100 Instant Bundled Savings
$3,400 USD
*Shown with optional 12″ Wing Set
TRAKOR® LOPPET RAZOR DeTRAKOR
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 36″ SNO-RAZOR
- (1) 36″ Deflector Bracket
- (1) 36″ Deflector Panel
- (1) 36″ DeTRAKOR Assembly
TRAKOR LOPPET RAZOR DeTRAKOR
#TK-L006P-RZ-DT
$3,900 USD
-$100 Instant Bundled Savings
$3,800 USD
TRAKOR® LOPPET RAZOR WING
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) 36″ SNO-RAZOR
- (1) 36″ Deflector Bracket
- (1) 36″ Deflector Panel
- (1) 36″ DeTRAKOR Assembly
TRAKOR LOPPET RAZOR DeTRAKOR
#TK-L126P-RZ-DT
$4,100 USD
-$150 Instant Bundled Savings
$3,950 USD
TRAKOR® LOPPET BLASTER
Includes
- (1) 20″ Steel Grooming Chassis
- (1) Weight cover w/ 2 Rubber Straps
- (1) Loppet 60 Drawbars (1-RH, 1-LH)
- (1) 20″ Hitch Plate Assembly
- (1) Track Mold Set
- (1) Stainless Steel Track Cutter Set
- (1) 6″ Pin Coupler w/ Detent Pin
- (1) 2″ Ball Adapter
- (1) 12″ Wing Set
- (1) SNO-BLASTER V-Plow Shovels
- (1) SNO-BLASTER V-Plow Assembly
TRAKOR LOPPET BLASTER
#TK-L126P-SB
$4,500 USD
-$200 Instant Bundled Savings
$4,300 USD
Primarily used in fresh snow and soft snow, the TRAKOR Standard is also used behind SNO-RAZOR equipped SNO-MASTERS, making perfect tracks in all snow conditions. Making ski tracks that are perfect is easier with a TRAKOR. Simple, rugged, safe and efficient snow groomer.
The 44” welded drawbar features a breakaway coupler, which protects the operator and groomer from hidden obstacles. Locally purchased, solid cement blocks weight the sled for maximum compaction.
Optional 12” Wings are normally fitted to compact the poling area on both sides of the tracks, they provide a stable poling corduroy and bend up if they encounter a tree or post.
The optional DeTRAKOR bolts on the back of any TRAKOR to remove tracks on steep hills and sharp corners.
TRAKOR Specifications
| TRAKOR STANDARD | TRAKOR LOPPET 60 | |
|---|---|---|
| Grooming Width: | ||
| - without Wings | 20" (508 mm) | 20" (508 mm) |
| - with 12" Standard Wings | 40" - 44" (1016 mm - 1118 mm) | 40" - 44" (1016 mm - 1118 mm) |
| Drawbar Length | 44" (1118 mm) | 60" (1524 mm) |
| Length - Overall | 63" (1600 mm) | 79" (2006 mm) |
| Height - Overall | 8" (203 mm) | 15" (381 mm) |
| Weight with 12" Wings: | ||
| - without Blocks | 63 lbs (29 kg) | 76 lbs (34 kg) |
| - with 2 - 4" Blocks (72 lbs)* | 135 lbs (62 kg) | 148 lbs (67 kg) |
| - with 2 - 6" Blocks (110 lbs)* | 173 lbs (79 kg) | 186 lbs (84 kg) |
| Chassis/Drawbar Material | Steel | Steel |
| Hardware | Stainless Steel | Stainless Steel |
| Recommended Towing Machines: | ||
| - Snowmobile | 15" wide, long-track (136"+) | 15" wide, long-track (136"+) |
| - ATV/UTV | Track Equipped | Track Equipped |
| *Solid Concrete Blocks 8" x 16" |
Specifications subject to change without notice.
