SNO-Master 72
This is the preferred setup for wide path efficient snow grooming. SNO-MASTER 72 w/SNO-RAZOR and 12" wings allows you to groom in the most snow conditions.

SNO-MASTER® 72

The SNO-MASTER 72 grooms up to a 96” (2.4M) trail in a single pass and eats up large trail systems quickly at speeds of 12-15 mph (20-25 kmh). The SM72 is commonly pulled by a 20” wide, long-tracked, utility-type snowmobile or tracked ATV/UTV.

Need Help? Complete the Request Quote form to help design the perfect combination.

The SM72 is normally equipped with the optional 72” SNO-RAZOR, which is used for leveling, removing the tracks left by the towing machine and leaving a perfect corduroy in all snow conditions.

The SNO-MASTER 72 is also offered as a basic compaction groomer for those who just want to pack a sledding, skiing or snowboard hill or groom a trail to their ski-in/ski-out home.

A Standard 12” Wing Set is included. The break-away coupler set includes a flat coupler to set compaction angle, plus 3” & 5” offset couplers to increase compaction angle for fresh snow, eliminating the need for a separate “roller” implement.

An optional Wheel Kit is available if you have road crossings or the need to move in and out of a maintenance building.

0%

    360 Degree View

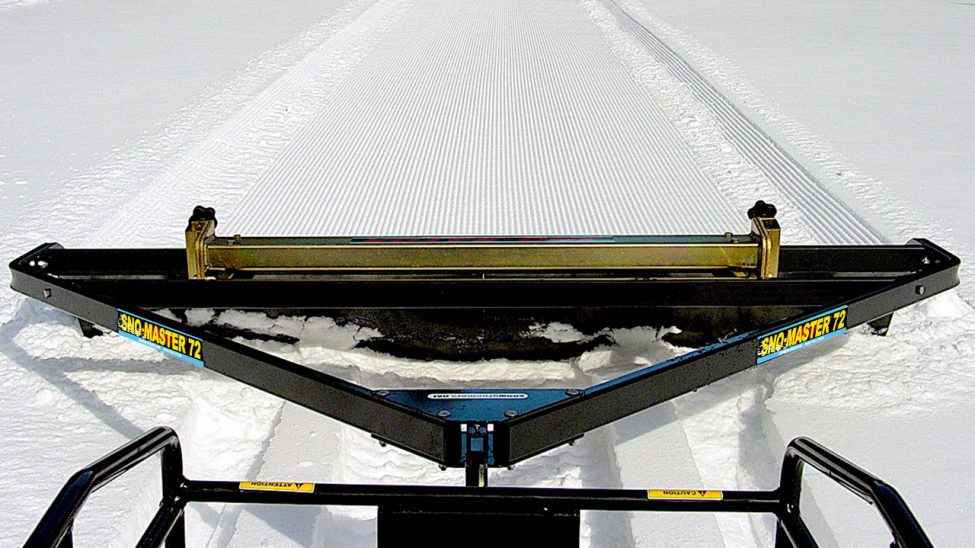

    Click and drag the image for a 360 degree view of a SNO-MASTER with SNO-RAZOR.

    SNO-MASTER® 72

    SNO-MASTER 72 Standard Pkg

    #SM-7006P

    w/ 6in STD PIN Coupler

    $3,459.95

    SNO-MASTER 72 Standard Pkg

    #SM-7006R

    w/ 6in RING Coupler

    $3,459.95

    SNO-MASTER 72 Wing Pkg

    #SM-7126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    $3,599.95

    SNO-MASTER 72 Wing Pkg

    #SM-7126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    $3,599.95

    SNO-MASTER 72 RAZOR Pkg

    #SR-7126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    w/ 72in SNO-RAZOR & Deflector



    $5,199.95

    SNO-MASTER 72 RAZOR Pkg

    #SR-7126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    w/ 72in SNO-RAZOR & Deflector



    $5,199.95

    SNO-MASTER 72 RAZOR / Wheel Kit Pkg

    #SW-7126P

    w/ 6in STD PIN Coupler

    w/ 12in Wing Set

    w/ 72in SNO-RAZOR & Deflector

    w/ 72 Wheel Kit

    $5,859.95

    SNO-MASTER 72 RAZOR / Wheel Kit Pkg

    #SW-7126R

    w/ 6in RING Coupler

    w/ 12in Wing Set

    w/ 72in SNO-RAZOR & Deflector

    w/ 72 Wheel Kit

    $5,859.95

    Wide Trail Groomer Specifications

     SNO-MASTER 48SNO-MASTER 72
    Grooming Width:
    - without Wings 48" (1219 mm)72" (1829 mm)
    - with 12" Berm Wings56" - 60" (1422 mm - 1524 mm)80" - 84" (2032 mm - 2133 mm)
    - with 12" Standard Wings60" - 72" (1524 mm - 1829 mm)84" - 96" (2133 mm - 2438 mm)
    Length - Overall 68" (1727 mm) 79" (2007 mm)
    Height - Overall16" (406 mm)16" (406 mm)
    SNO-RAZOR Width 48" (1219 mm) 72" (1828 mm)
    SNO-RAZOR Height AdjustmentInfinitely AdjustableInfinitely Adjustable
    SNO-RAZOR Angle Adjustment15 - 30 degrees15 - 30 degrees
    Weight - empty w/12" Wings102 lbs (46.4 kg)168 lbs (76.4 kg)
    Weight with SNO-RAZOR155 lbs (70.4 kg)234 lbs (106.4 kg)
    Block Capacity (2" concrete blocks)99 lbs (45 kg) 6132 lbs (60 kg) 8
    Total Maximum Weight254 lbs (115.4 kg)366 lbs (166.4 kg)
    Chassis/Drawbar MaterialSteelSteel
    SNO-RAZOR MaterialSteelSteel
    HardwareStainless SteelStainless Steel
    Recommended Towing Machines:
    - Snowmobile15" wide, long-track (136"+)20" wide, long-track (154"+)
    - ATV/UTVTrack EquippedTrack Equipped

    Specifications subject to change without notice.

    SNO-MASTER 72 Replacement Parts & Accessories

      Part #Price
    Wings
    6" Wing Set (1-6" RH Wing + 1-6" LH Wing)200-5010$149.99
    Sale: $99
    8" Wing Set (1-8" RH Wing + 1-8" LH Wing)200-5020$179.99
    Sale: $109
    12" Berm Wing Set (1-12" RH Wing + 1-12" LH Wing)200-5040$199.99
    Sale: $119
    12" Wing Set (1-12" RH Wing + 1-12" LH Wing)300-1012$199.99
    COUPLERS & HITCHES
    ATV Universal Hitch 3/4″300-1004$79.99
    UTV Universal Hitch 1″300-1005$89.99
    SNO-MASTER Rear Hitch300-1006$99.99
    Snow Groomer hitch couplers6″ Standard Pin Coupler w/ Detent Pin300-1060$59.99
    Ring type Pintle Hook6″ Ring Coupler300-1061$49.99
    6″ Standard Pin Coupler – 3″ Offset w/ Detent Pin300-1062$89.99
    6″ Ring Coupler – 3″ Offset300-1063$79.99
    6″ Standard Pin Coupler – 5″ Offset w/ Detent Pin300-1064$109.99
    6″ Ring Coupler w/ 5″ Offset300-1065$99.99
    PLASTICS-COMBS
    24″ Urethane Comb (SM72 Set of 3)300-5004-7$449.99
    SM72 Weight/Bow Cover Set (1 Left, 1 Right, 1 Center)300-5006$69.99
    72″ Deflector PC/ABS Panels (Set of 2-36″)300-6009$149.99
    DRAWBARS - SUB-FRAMES - HITCH PLATES
    SM72 Sub-Frame300-6006$599.99
    SM72 Drawbars (LH and RH)300-7201$589.99
    SM72 Hitch Plate Assembly300-7202$119.99
    HARDWARE
    .125 Hitch Pin Set (Set of 2)300-1001$3.99
    3/8" Orange Handle Detent Pin300-1003$14.99
    SNO-MASTER Tracking Runner Set (Set of 2 Stainless Steel)300-5001$54.99
    SNO-MASTER Pan Link Adjustment w/Spacer (Set of 2)300-5002$49.99
    Thumb Screws (Set of 3 10-32)300-5003-1$4.99
    Thumb Screws (Set of 3 1/4-20)300-5003-2$7.99
    TOW BARS
    Tow Bar Short Tube300-5011$49.99
    72 Tow Bar Tube300-5013$149.99
    Tow Bar Bracket300-5014$99.99
    Tow Bar Hitch300-5015$99.99
    WHEEL KIT
    Wheel Kit Mounting Bracket (Set of 2)300-5008$39.99
    10″ Tubed Wheel300-5009$19.99
    Wheel Kit Locking Pin300-5010$19.99
    SNO-MASTER 72 Wheel Kit300-7203$799.99
    24″ Lifting Handle w/ Rubber Grip300-7204$79.99
    SNO-RAZOR
    72″ Cutter Assembly300-6003$979.99
    72″ SNO-RAZOR w/Deflector100-3030$1,600.00
    SNO-RAZOR 72 Cross Tube300-6011$179.99
    SNO-RAZOR 72 Pivot Plate (Right)300-6015$109.99
    SNO-RAZOR 72 Pivot Plate (Left)300-6016$109.99
    SNO-RAZOR 72 Shear Bolts/Nuts (Set of 2)300-6017$5.99
    SNO-RAZOR 72 Leg300-6019$189.99
    SNO-RAZOR Fluted Handle Locking Screw300-6020$19.99
    Magnetic Base Angle Indicator300-6021$9.99

    Specifications subject to change without notice.
