path-master sno-razor narrow trail snow trail groomer

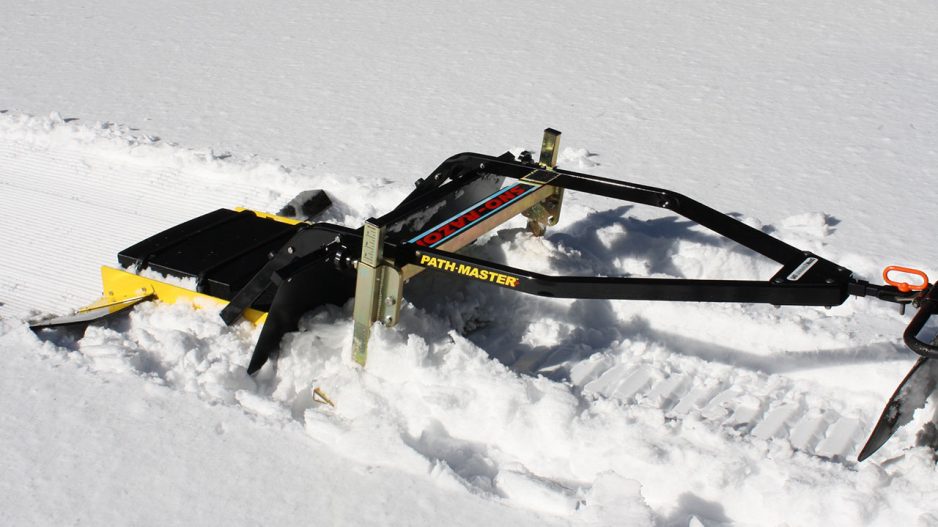

PATH-MASTER® w/ SNO-RAZOR®

A PATH-MASTER equipped with the optional 36’’ SNO-RAZOR allows you to level your trail, shearing off drifts and washboards while providing granular snow for molding into corduroy. The SNO-RAZOR’S infinitely adjustable height and variable blade angle make creating perfect trails in all snow conditions a snap. The shear-bolt protected RAZOR swings up and rearward if it encounters a hidden obstacle. This high-speed groomer covers a lot of ground quickly, leaving you plenty of time to enjoy your trails.

Specifications  Price List  Shipping Calculator

Narrow Trail Groomer Specifications

 PATH-MASTERPATH-MASTER w/SNO-RAZORSNO-BLASTER
Grooming Width:
- without Wings 20" (508 mm) 20" (508 mm) 20" (508 mm)
- with 12" Berm Wings 32" (812 mm) 32" (812 mm) 32" (812 mm)
- with 6" Wings 33" (838 mm) 33" (838 mm) 33" (838 mm)
- with 8" Wings 36" (914 mm) 36" (914 mm) 36" (914 mm)
- with 12" Standard Wings40" - 44" (1016 - 1118 mm)40" - 44" (1016 - 1118 mm)40" - 44" (1016 - 1118 mm)
Drawbar Length 60" (1524 mm) 60" (1524 mm) 60" (1524 mm)
Length - Overall 79" (2006 mm) 79" (2006 mm) 79" (2006 mm)
Height - Overall15" (381 mm)22" (559 mm)29" (737 mm)
Weight with 12" Wings:
- without Blocks71 lbs (32 kg)112 lbs (51 kg)140 lbs (64 kg)
- with 2 - 4" Blocks (72 lbs)*143 lbs (65 kg)184 lbs (84 kg)212 lbs (96 kg)
- with 2 - 6" Blocks (110 lbs)*181 lbs (82 kg)222 lbs (101 kg)250 lbs (114 kg)
V-Plow WidthXX33" (838 mm)
Height AdjustmentX5" (127mm)5" (127mm)
Chassis/Drawbar MaterialSteelSteelSteel
SNO-RAZOR/V-Plow MaterialSteelSteelSteel
HardwareStainless SteelStainless SteelStainless Steel
Recommended Towing Machines:
- Snowmobile15" wide, long-track (136"+)15" wide, long-track (136"+)15" wide, long -track (136"+)
- ATV/UTVTrack EquippedTrack EquippedTrack Equipped
*Solid Concrete Blocks 8" x 16"

Specifications subject to change without notice.

Narrow Trail Groomer Price List

NARROW TRAIL GROOMERS
PATH-MASTER®20” Compaction Groomer with choice of Wing Set$999.95
SNO-RAZOR®36” SNO-RAZOR and Snow Deflector$899.95
V-PLOWV-Plow for PATH-MASTER®$999.95
SNO-BLASTER®20" Compaction Groomer and V-Plow with choice of Wing Set$1,999.95

All prices in U.S. Dollars. Prices subject to change without notice. Michigan Residents add 6% Sales Tax.

Please specify:

1. Wing Set

  1. 6” Wing Set
  2. 8” Wing Set
  3. 12” Berm Wing Set (.230” thick)
  4. 12” Standard Wing Set (.290” thick)

2. Coupler Type

Standard Snowmobile Pin-Type

Ring-Type for Pintle Hook

3. Hitch Height for SNO-BLASTER

The SNO-BLASTER requires a hitch height from 15” – 19’” to achieve the full 5” adjustment range of the plow.

We will include a 3” or 5” offset coupler to get you within the 15” – 19” range if needed. The offset coupler can go up or down, to increase or decrease hitch height.
